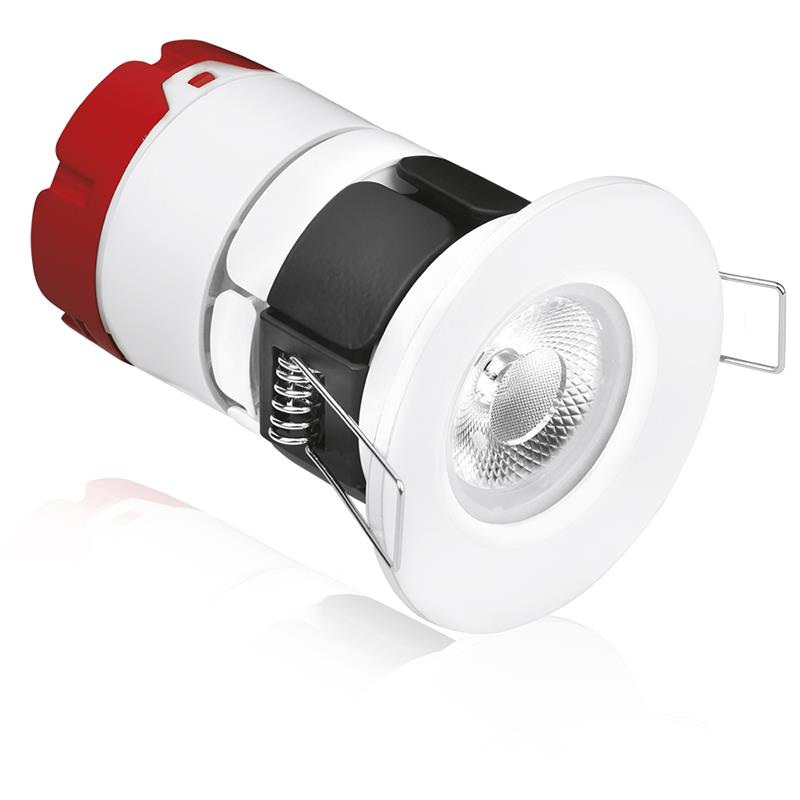

mPro™ Fixed IP65 Dimmable Fire Rated Downlight

Integrated, fire rated 7W LED downlight with driver-on-board. Convertible design to fit ceiling voids as shallow as 47mm. Available in 2700K, 3000K and 4000K. Interchangeable bezels available in white, matt white, polished chrome and satin nickel. Multiple lens options: 40° and 60°. Rated to 30,60 and 90 minute fire ceilings.Complies with BS EN 1365-2: 2014 (fire resistance), BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (acoustics), BS EN 13141-1:2004 (Air leakage).

SKU Code Description
AU-AP600 mPro™ and m10™ Adaptor Plate
AU-BZ600 mPro™ and m10™ Bezel
AU-BZ601 mPro™ and m10™ IP65 Square Bezel
AU-BZ603 mPro™ and m10™ Bezel
AU-FRLM10EM 3 Hour Maintained Emergency Pack
Features & Benefits
IP65 with IP65 bezel to order separately
Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
60° lens supplied, interchangeable 40° lens - sold separately
IC cap included for installation
Separate driver to install below other insulation material
ErP compliant - High colour rendering index (Ra) >80
Rated to 30, 60 & 90 minute fire ceilings
EnEV compliant
(L70) at a 40,000 hour lifetime
5 Year Warranty – see for details
Read More
Technical Information
Lifetime (Hours)
Power Factor
IP Rating
Overall Diameter (mm)
Height (mm)
Recess Depth (mm)
Cutout Diameter Min. (mm)
Cutout Diameter Max. (mm)
  • ErP Compliant
    ErP Compliant
  • Nemko
  • EnEV
  • IP65
  • LED Light Source
    LED Light Source
  • CE
  • BBC
  • RoHS
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • Dimmable

A versatile lock and release electrical connector allowing for easier installation with a screwless cover and cable clamp allowing for quicker installation with large terminals for the ease of wiring
LEDchroic™ anti-glare lens technology accurately simulates the light output from traditional dichroic reflector. Aesthetically, it looks exactly like a dichroic halogen when on or off
