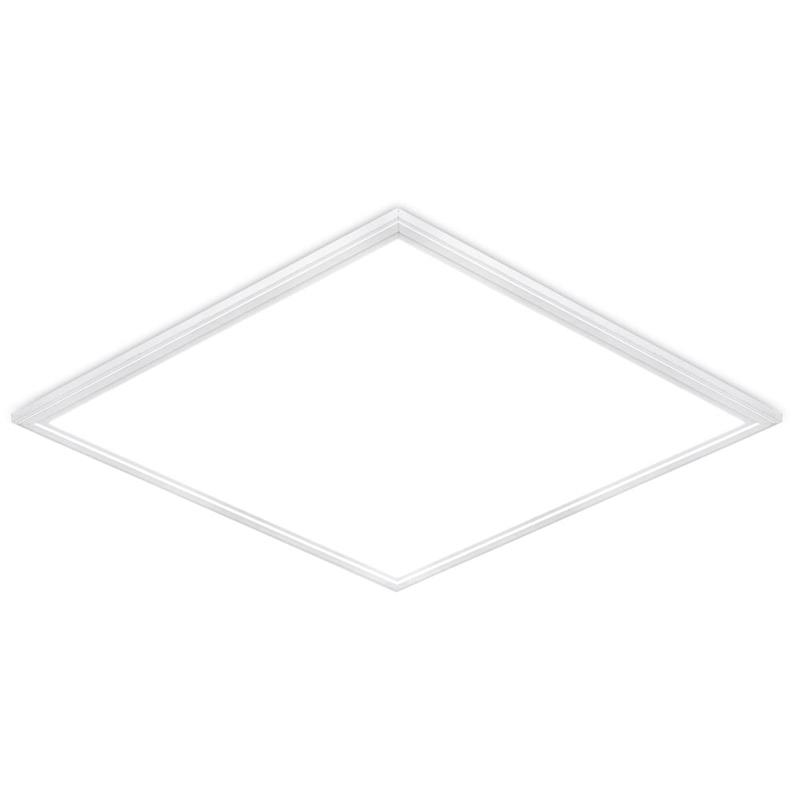

Versitile™ 30W 2' x 2' Dimmable Panel



The Aurora Generation 3 ultra-thin LED panels feature high efficiency, quality and performance. These luminaires are designed with edge-lit technology to produce highly efficient lighting, which provides pleasant and uniform light distribution with no glare. The luminaires have a clean, modern look and the ultra-thin profile makes them unique and an ideal solution for either drop ceilings or suspended in offices, schools, hospitality and other commercial applications. Their high CRI is ideal for retail stores and showrooms where natural color rendering is essential. The Aurora edge-lit flat panels offer lower power consumption, longer life, dimming option and lower overall maintenance (no re-lamping required) than the standard fluorescent fixture and are therefore an excellent energy efficient replacement. Compatible with most 0-10V dimmers. IES files available on the Aurora website.

SKU Code Wattage Lumens Colour Temperature Finish Colour
AR-LP122Q3DD/35 30 3750 3500 RAL9016
AR-LP122Q3DD/35EM 30 3750 3500 RAL9016
AR-LP122Q3DD/40 30 3750 4000 RAL9016
AR-LP122Q3DD/40EM 30 3750 4000 RAL9016
AR-LP122Q3DD/50 30 3750 5000 RAL9016
AR-LP122Q3DD/50EM 30 3750 5000 RAL9016
SKU Code Description
AR-DWFK22C 2' x 2' Panel Flange Kit
AR-SKLPB100 Panel Suspension Kit
AR-SMKLP122C 2' x 2' Panel Contractor Mount Kit
AR-SMLPC122C2 2' x 2' Designer Surface Mount Kit
DOWNLOADS
All IES/LDT Files
AR-LP122Q3DD/35
IES
AR-LP122Q3DD/40
AR-LP122Q3DD/50
IES
Technical Information
Lifetime (Hours)
50000
Power Factor
0.95
IP Rating
Damp Location
Length (Inches)
23.7
Width (Inches)
23.7
Height (Inches)
0.39
Recess Depth (Inches)
1.96
  • FCC
    FCC
  • cULus Listed
    cULus Listed
  • Damp Locations
    Damp Locations
  • DLC Premium
    DLC Premium
