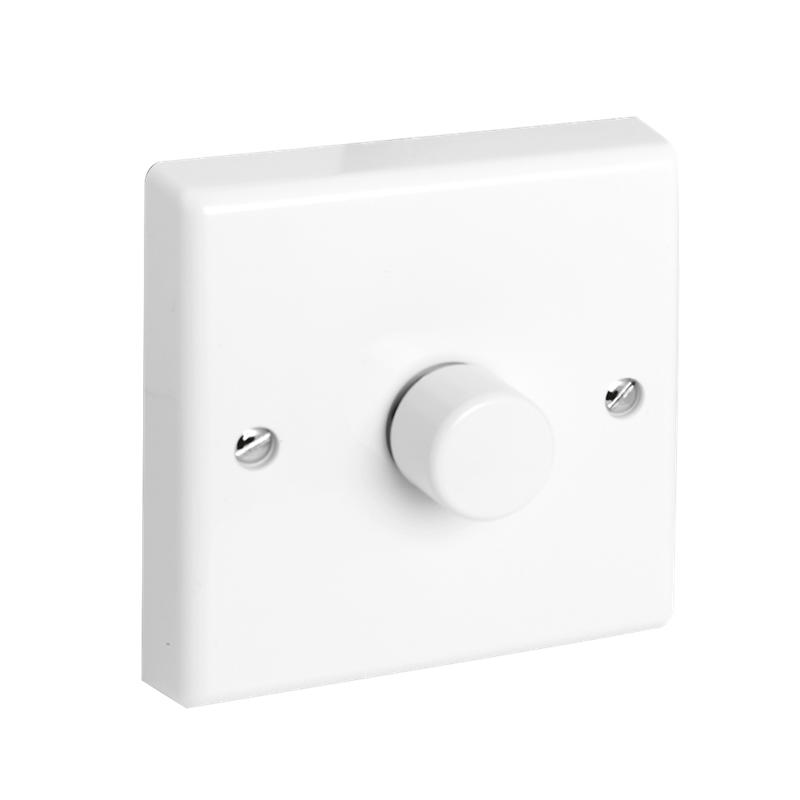

1 Gang 2 Way Rotary Dimmer

• Suitable for control of dimmable electronic transformers, toroidal transformers and tungsten lamps WITHOUT de-rating
• Not suitable for use with fluorescent lamps
• Leading edge phase control
• For use with resistive and inductive loads
• Integrated over-temperature protection fuse
• Module case ultrasonically sealed to reduce dimmer buzzing
• Smooth dimming operation from 0-100% light output
• Fits a plaster depth (16mm) mounting box AU-DSP401. Use a 25mm deep (minimum) mounting box for AU-DSP402, 45mm for AU-DSP1001
• One or two way switching
• Complies with the latest Electrical Safety standard for dimmer switches EN 60669-2-1:2000
• EMC compliance - EN 55015
• Available in white finish only
• Derate dimmer by 70% for LED loads
