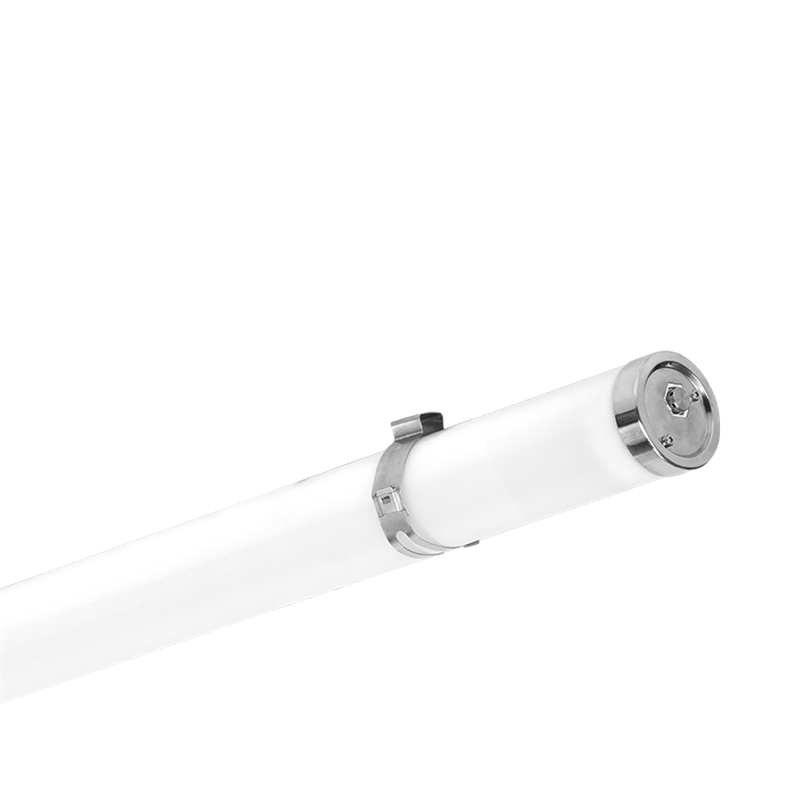

LinearTube™ 1200mm 40W IP69K Tubular LED Anti-Corrosive



The IP69K LED anti-corrosive batten, LinearTube™ is designed to work in environments where robust lighting is required, for example the food industry or agricultural sites. The batten can withstand heavy wash down, and has a -20° to 45° ambient operating temperature. The batten can be surface mounted or suspended, delivering 120lm/W. The internal aluminium heatsink offers enhanced heat dissipation, and the fully polycarbonate diffuser is IK10 rated for impact resistance.

SKU Code Wattage Lumens Colour Temperature Beam Angle Finish Colour SKU Type
EN-ANTB1200F/40 40 4800 4000 120 Frosted White Non Dimmable
SKU Code Description
EN-ANTSM1 LinearTube™ Surface Mount Kit
Downloads
All Energy Label
EN-ANTB1200F/40
All IES/LDT Files
EN-ANTB1200F/40
Features & Benefits
Fully polycarbonate diffuser with 316 stainless steel end caps
Internal aluminium heatsink for enhanced heat dissipation
Delivering 120lm/W
IP69K rated and designed to work in environments that require a heavy wash down, for example the food industry
IK10 rated impact resistance
-20° to 45° ambient operating temperature
3 Year Warranty
Read More
Technical Information
Lifetime (Hours)
50000
Power Factor
0.9
IP Rating
IP69K
Overall Diameter (mm)
70
Length (mm)
1200
  • IK10
    IK10
  • IP69K
    IP69K
  • Class 2 Equipment
    Class 2 Equipment
  • L2 Compliant
    L2 Compliant
  • SEAI
    SEAI
