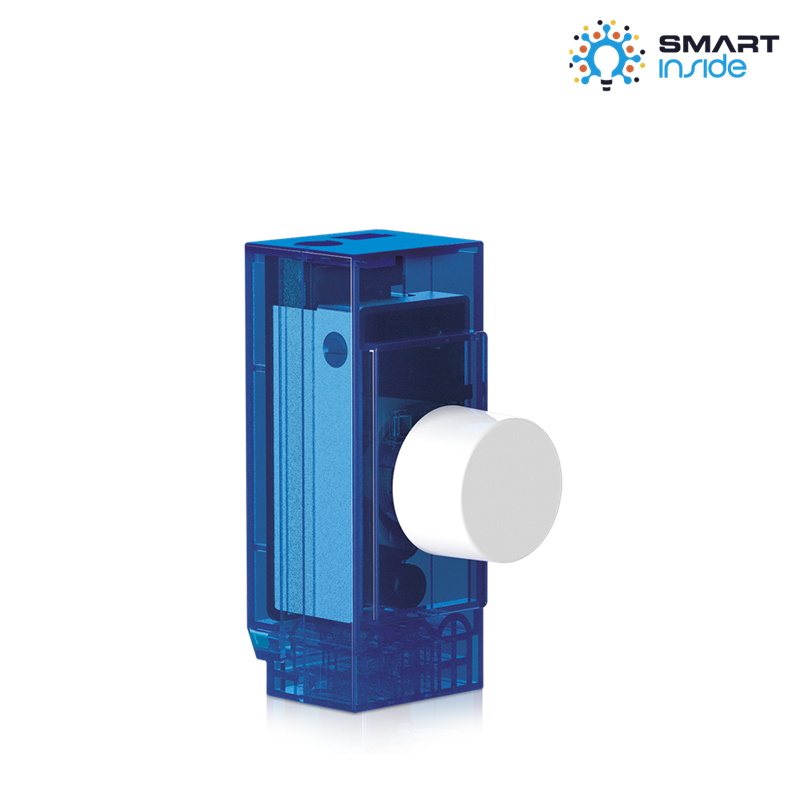

AOne™ 250W Smart Rotary Dimmer Module



Revolutionise your lighting space with our new Zigbee controlled AOne™ Rotary Dimmer. This dimmer switch fits into a standard 25mm back box (25mm - 1-gang, 35mm - 2-gang) and once replaced smartens your circuit allowing you to dim up to 250W of LED or Halogen. Smart Slave Mode enables the switch to be used as a 2 way dimmer with a master or control groups of smart lights via Zigbee.

SKU Code Wattage Finish Colour SKU Type
AU-A1ZB2WDM 250 Blue Triac Dimmable
Features & Benefits
Requires a live and a switched live, no neutral required
Master & slave mode combined into one product (switch selectable)
Fits into a 25mm back box (25mm - 1-gang, 35mm - 2-gang)
Blue back-light which can be turned on/off
10W minimum load required per dimmer in the circuit
Up to 250W LED
Up to 250W Halogen
3 Year Warranty
Read More
Technical Information
IP Rating
IP20
Length (mm)
63
Width (mm)
25
Height (mm)
38
Cutout Diameter Max. (mm)
6
  • CE
    CE
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • Dimmable
    Dimmable
  • 240V
    240V
