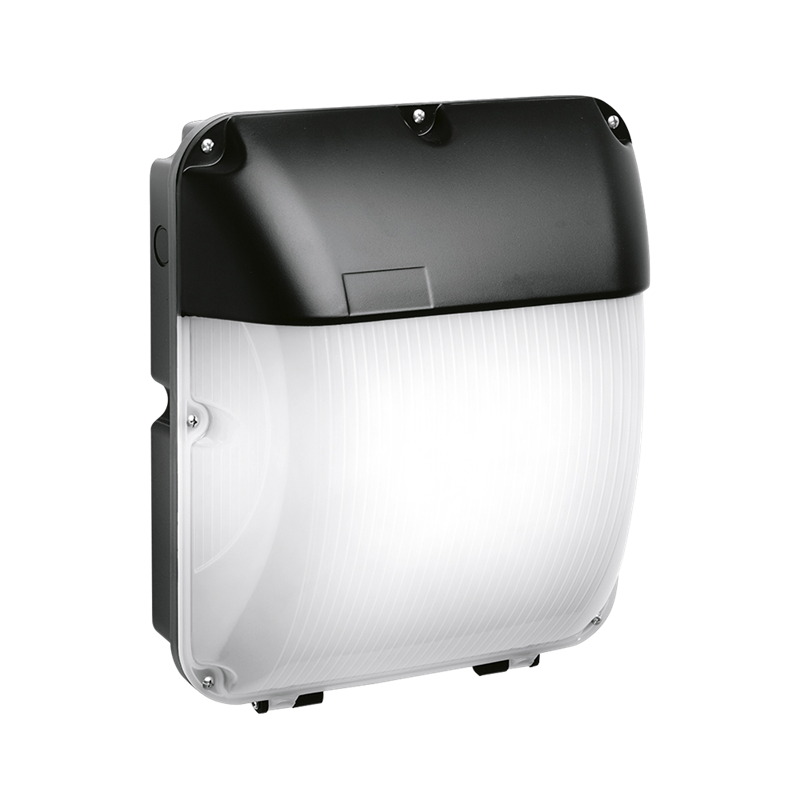

UtiliteXL™ 30W IP65 Wall Pack



Designed to last in a tough environment, the UtiliteXL™ wall pack with cast aluminium base and polycarbonate diffuser is available in standard, microwave sensor, photocell and emergency versions with black housing.

SKU Code Wattage Lumens Colour Temperature Beam Angle Finish Colour SKU Type
EN-WP103/40 30 2550 4000 120 Black Non Dimmable
EN-WP103EM/40 30 2550 4000 120 Black Emergency
EN-WP103PH/40 30 2550 4000 120 Black Photocell
Downloads
All Energy Label
EN-WP103/40
EN-WP103EM/40
EN-WP103PH/40
All IES/LDT Files
EN-WP103/40
EN-WP103EM/40
EN-WP103PH/40
Features & Benefits
IP65 wall pack with cast aluminium base and polycarbonate diffuser.
IK10 rating
Non-dimmable with integrated LED driver
Suitable for walkways, stairways, general amenity & security areas.
SEAI: EN-WP103/40 - LIG84989
3 year warranty
Read More
Technical Information
Lifetime (Hours)
50000
Power Factor
0.9
IP Rating
IP65
Length (mm)
309
Width (mm)
264
Height (mm)
309
Switching Cycles
15000
  • CE
    CE
  • Earth
    Earth
  • IK10
    IK10
  • SAA
    SAA
  • Do Not Cover
    Do Not Cover
  • LED Light Source
    LED Light Source
  • 240V
    240V
  • L2 Compliant
    L2 Compliant
  • IP65
    IP65
