Fire Rated Downlighting
Energy
Spec Sheet

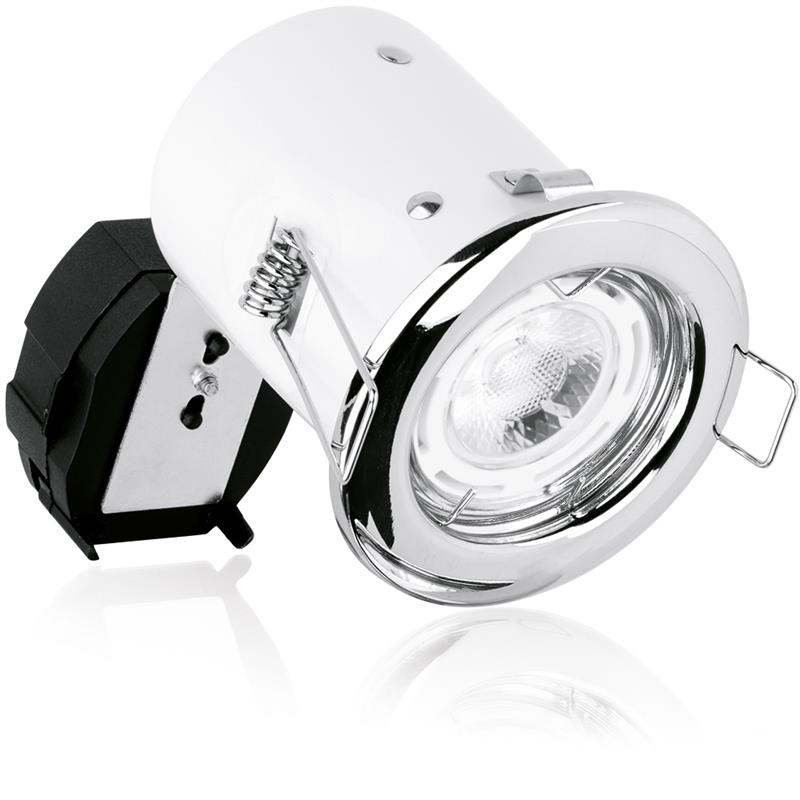

GU10 Fixed Fire Rated Downlight



Fixed Spring Clip Fire Rated Downlight. Suitable for Halogen and CFL GU10 lamps.

SKU Code Max. Lamp Wattage Finish Colour
A2-DLM941PC 50 Polished Chrome
A2-DLM941SN 50 Satin Nickel
A2-DLM941W 50 White
SKU Code Description
AU-0501F MR16 Lampholder with 21cm tails
AU-ICC60 60mm Insulation Cover
Features & Benefits
UK Patent GB2426321
Integrated intumescent material completely seals the downlight and cut-out in the event of a fire
Not for use with dichroic halogen (cool beam) lamps
Tested in 30, 60 & 90 minute fire rated ceilings
Tested to BS476 Part 21
BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (acoustics) confirming that they maintain the ability for an internal or separating floor to provide sound insulation
Optional MR16 lampholder (AU-0501F) available for flexibility of lamp choice
Lamp not included
Reduced height fire rated can allows installation in shallow ceiling voids
3 Year Warranty - see www.auroralighting.com for details
Read More
Technical Information
Overall Diameter (mm)
80
Recess Depth (mm)
110
Cutout Diameter Min. (mm)
65
  • Earth
    Earth
  • Nemko
    Nemko
  • CE
    CE
  • 240V
    240V
  • Equipment for Indoor Use
    Equipment for Indoor Use
