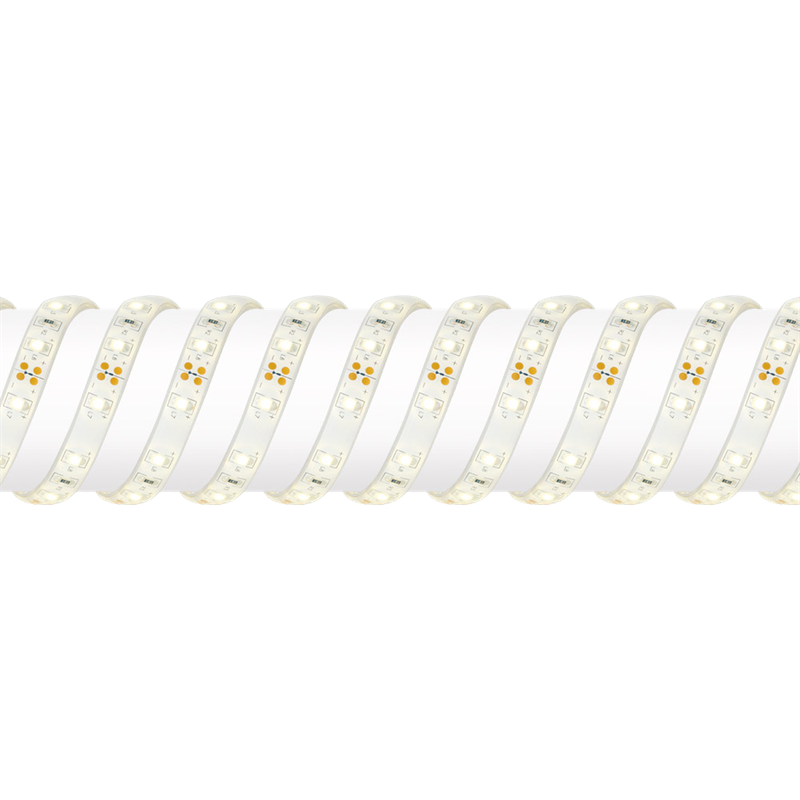

LEDLine™ PRO IP67 Single Colour Flexible Strip

LEDline™ PRO single colour IP67 LED strip is ideal for wet environments and external applications. Low power consumption of 4.8W per metre. Strip can be cut to length and 2m leads soldered to special order.

Spec Sheet

  • Single colour flexible IP67 LED strip with 3M™ self adhesive backing
  • Beam angle of 120° and 17mm between LEDs, 60 LEDs per metre
  • Cut points every 50mm for maximum flexibility
  • Voltage drop of 4V per 10m and maximum run of 10m
  • For runs over 10m individual lengths should be connected in parallel
  • Any joints or termination points are maximum IP65 rated
  • Requires 12V LED driver (sold separately)
  • Reel length 10m
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
EN-ST100IP/30 4.8 475 3500 80
EN-ST100IP/40 4.8 495 4000 80
EN-ST100IP/60 4.8 520 6300 80
EN-ST100IP/BLU 4.8 80

EN-CH100 Surface Profile
EN-CH100EC1 Channel End Cap
EN-CH100EC2 Cable Entry Channel End Cap
EN-CH101 Surface Profile
EN-CH101EC1 Channel End Cap
EN-CH101EC2 Cable Entry Channel End Cap
EN-CH102 Recessed Profile
EN-CH102EC1 Channel End Cap
EN-CH102EC2 Cable Entry Channel End Cap
EN-CH103 Recessed Profile
EN-CH103EC1 Channel End Cap
EN-CH103EC2 Cable Entry Channel End Cap
EN-CH104 Corner Profile
EN-CH104EC1 Channel End Cap
EN-CH104EC2 Cable Entry Channel End Cap
EN-CH105 Deep Profile
EN-CH105EC1 Channel End Cap
EN-CH105EC2 Cable Entry Channel End Cap
EN-CHC1 Channel Mounting Clip
EN-CHC2 Channel Mounting Clip
EN-CHPC1CL Clear Diffuser Cover
EN-CHPC1FR Frosted Diffuser Cover
EN-CHPC2FR Frosted Diffuser Cover
EN-STIPCK LEDLine™ PRO IP68 Strip Connector Kit
Input Voltage (Min)
Input Voltage (Max)
Input Voltage Type
IP Rating
Height (mm)
Lifetime (Hours)
Positional Adjustment


Instruction Leaflet
Instruction Leaflet
