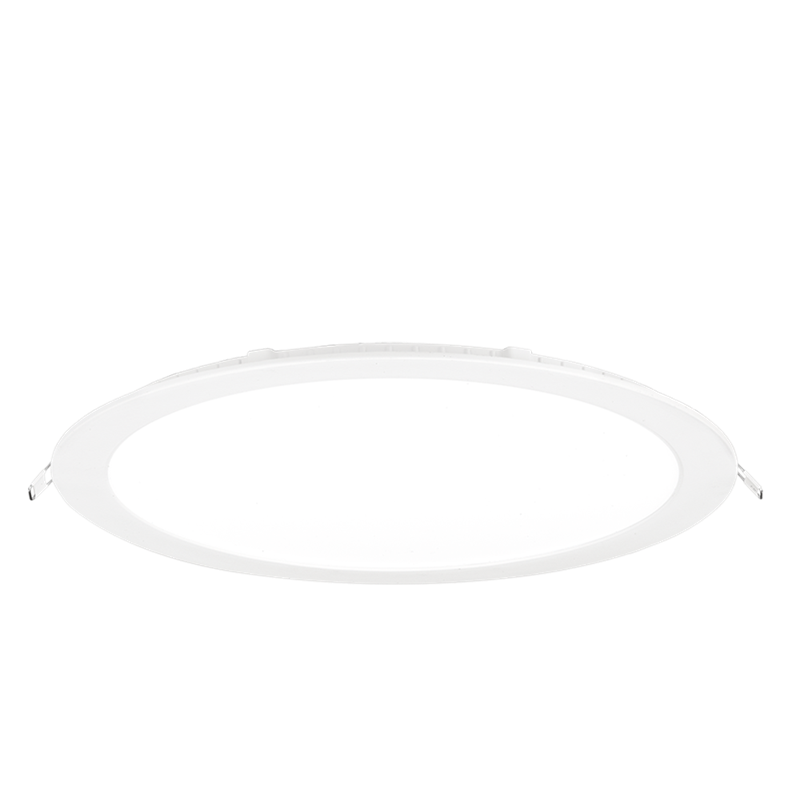

Slim-Fit™ 24W IP44 Round Low Profile LED Downlight
The Enlite range of Slim-Fit™ low profile downlights are engineered to deliver superior light output and uniformity utilising the latest edge-lit LED technology. At only 25mm deep including bracket, they are an ideal solution where ceiling voids are limited but high lumen output is required.
| SKU Code | Wattage | Lumens | Colour Temperature | SKU Type |
|---|---|---|---|---|
| EN-PL24B/30 | 24 | 1450 | 3000 | Non Dimmable |
| EN-PL24B/40 | 24 | 1600 | 4000 | Non Dimmable |
| EN-PL24B/65 | 24 | 1750 | 6500 | Non Dimmable |
| EN-PL24BDA/30 | 24 | 1450 | 3000 | DALI Dimmable |
| EN-PL24BDA/40 | 24 | 1600 | 4000 | DALI Dimmable |
| EN-PL24BDA/65 | 24 | 1750 | 6500 | DALI Dimmable |
| EN-PL24BV/30 | 24 | 1450 | 3000 | 1-10V Dimmable |
| EN-PL24BV/40 | 24 | 1600 | 4000 | 1-10V Dimmable |
| EN-PL24BV/65 | 24 | 1750 | 6500 | 1-10V Dimmable |
Features & Benefits
Low cost energy saving alternative to compact fluorescent fittings
Edge-lit low profile ideal for installations with limited recess space (25mm) and shallow ceiling voids
Plug and play remote driver for easy installation (40mm space required)
Separate triac dimmable driver available
Technical Information
Lifetime (Hours)
25000
Power Factor
0.9
IP Rating
IP44
Overall Diameter (mm)
300
Height (mm)
25
Recess Depth (mm)
50
Cutout Diameter Min. (mm)
280
Cutout Diameter Max. (mm)
280
-
CE -
Non-Replaceable LED -
240V -
RoHS -
SEAI -
Class 2 Equipment -
Equipment for Indoor Use -
IP44 -
LED Light Source
