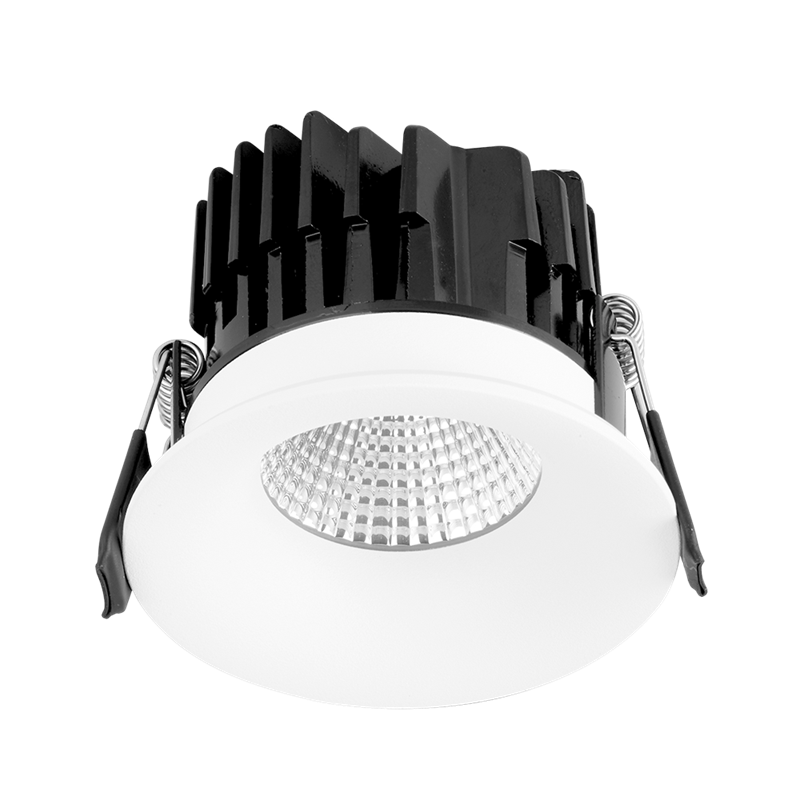

CurveE™ 10W Baffled Dimmable IP44 LED Downlight



Introducing the stylish CurveE™ LED downlight range, this low glare downlight has a sleek baffled design with the light source recessed back to reduce glare. Available in matt white these triac dimmable downlights are an ideal non-fire rated solution for hospitality and residential applications in areas where fire rating is not required.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-DLB101D/30 10 920 3000 Yes
EN-DLB101D/40 10 970 4000 Yes
Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility
DOWNLOADS
All IES/LDT Files
EN-DLB101D/30
EN-DLB101D/40
Features & Benefits
Baffled design for low glare - LED recessed by 10mm or 20mm
Plug and play remote driver for easy installation
IP44 rated - ideal for hospitality and residential applications such as corridors, living areas, bedrooms, dining rooms and zone 2 of bathrooms
UGR19 (Unified Glare Rating)
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
25000
Power Factor
0.90
IP Rating
IP44
Overall Diameter (mm)
80
Height (mm)
60
Recess Depth (mm)
85
Cutout Diameter Min. (mm)
70
Cutout Diameter Max. (mm)
72
DALI
No
  • CE
    CE
  • EnEV
    EnEV
  • L2 Compliant
    L2 Compliant
  • RoHS
    RoHS
  • SEAI
    SEAI
  • Class 2 Equipment
    Class 2 Equipment
  • IP44
    IP44
  • ErP Compliant
    ErP Compliant
  • BBC
    BBC
  • L1 Compliant
    L1 Compliant
  • 240V
    240V
