Uni-Fit™
Spec Sheet

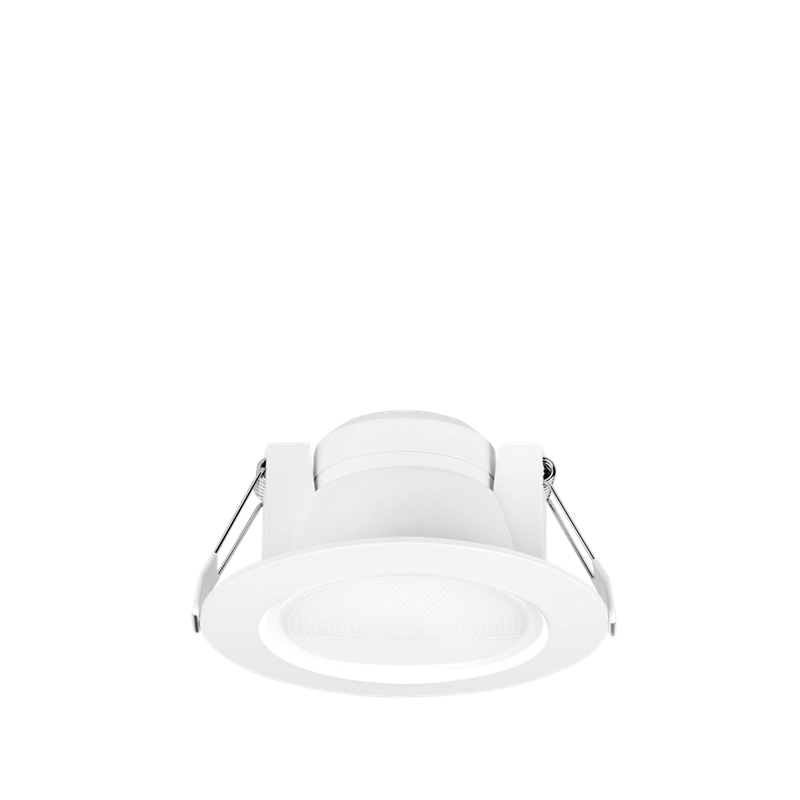

Uni-Fit™ 240V 10W Integrated IP44 Dimmable LED Downlight



Performance and Value - that’s what the Uni-Fit™ range of commercial downlights stands for. Featuring ThermoTec™ technology, integrated driver and high quality LED chips to deliver an outstanding lumen performance. The triac dimmable Uni-Fit™ range is the ideal cost effective solution for new or existing installations where traditional compact fluorescent downlights need upgrading to more efficient LED technology.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-DDL10/40 10 820 4000 Yes
SKU Code Description
EN-DLEM2 3 Hour Non-Maintained Emergency Pack
Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility
DOWNLOADS
All IES/LDT Files
EN-DDL10/40
Features & Benefits
Multiple sizes and wattages available to suit all new and retrofit installation lighting requirements
ThermoTec™ technology utilises a combination of highly efficient LED light source, aluminium heat sinking and thermoplastic material for longer life and consistent performance
Compact integrated driver for easy installation and shallow ceiling voids
Life not affected by frequent switching e.g. when used with occupancy controls
IP44 rated
Pre-wired with 500mm 2 core cable
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
25000
Power Factor
0.8
IP Rating
IP44
Overall Diameter (mm)
120
Height (mm)
60
Recess Depth (mm)
70
Cutout Diameter Min. (mm)
90
Cutout Diameter Max. (mm)
100
  • CE
    CE
  • Non-Replaceable LED
    Non-Replaceable LED
  • L1 Compliant
    L1 Compliant
  • SEAI
    SEAI
  • ErP Compliant
    ErP Compliant
  • L2 Compliant
    L2 Compliant
  • RoHS
    RoHS
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • IP44
    IP44
  • LED Light Source
    LED Light Source
  • 240V
    240V



By using a combination of a highly efficient LED source, aluminium heat sink and thermoplastic housing, any heat is efficiently drawn away from the driver and LEDs to provide longer life and a consistent performance throughout a product’s lifetime
