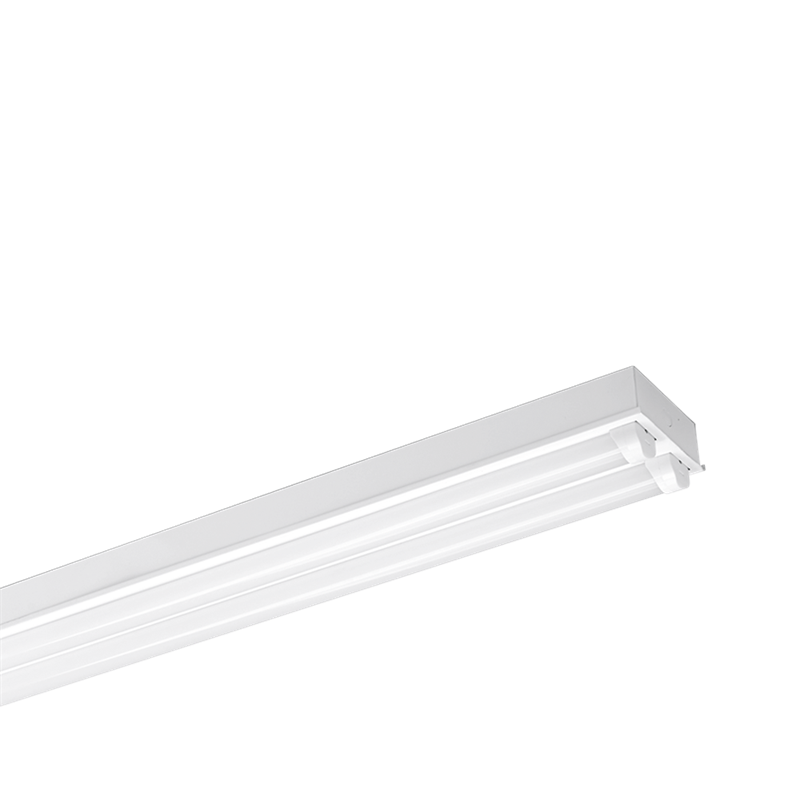

EcoT8™ 1800mm 51W IP20 Twin Open T8 LED Batten



The range of EcoT8™ integrated open LED battens looks so close to traditional T8 and T5 open style fluorescent fittings, you won't be able to tell they are LED. Perfect for retrofit or new build, they’ve been designed specifically to mimic traditional fittings. Maintenance free and available in single or twin with or without reflector, now you can upgrade and benefit from all the advantages of LED technology while maintaining existing look and feel of traditional fluorescent.

SKU Code Wattage Lumens Colour Temperature
EN-BT1851/40 51 4500 4000
Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility
DOWNLOADS
All IES/LDT Files
EN-BT1851/40
Everfine Sphere
IES
Everfine Sphere
LDT
Features & Benefits
Steel housing and high quality polycarbonate diffuser eliminate hot spots providing uniformed low glare light output
Perfect for retrofitting existing installations or as an alternative to T8 or T5 fluorescent fittings
Twin version available with winged reflectors for reduced glare
Through wiring with side and rear cable entry
Integrated driver supplied in housing
Available in typical 1200mm, 1500mm and 1800mm lengths
1.5kV surge protection
3 years warranty
Read More
Technical Information
Lifetime (Hours)
35000
Power Factor
0.95
IP Rating
IP20
Length (mm)
1820
Height (mm)
35
  • Non-Replaceable LED
    Non-Replaceable LED
  • Earth
    Earth
  • CE
    CE
  • RoHS
    RoHS
  • SEAI
    SEAI
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • LED Light Source
    LED Light Source
  • 240V
    240V
  • Walk Over
    Walk Over
