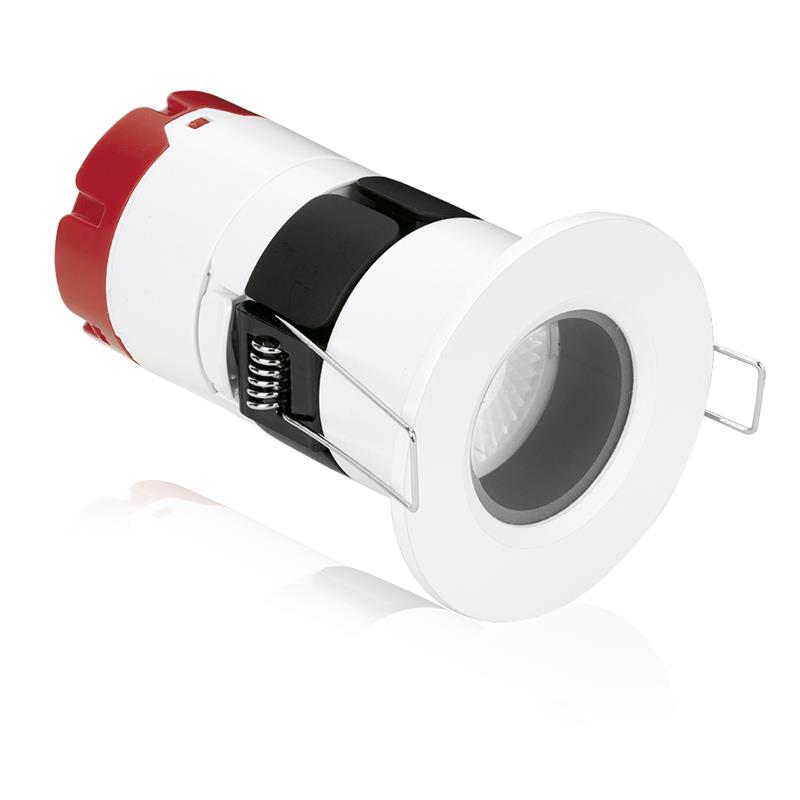

mPro™ IP65 Baffle Dimmable Fire Rated Downlight



Baffle, integrated, fire rated 7W LED downlight with unique convertible design to fit ceiling voids as shallow as 70mm. Incorporated miniaturised NanoDrive™ power supply. Available in 3000K and 4000K, delivering up to 76lm/W.

SKU Code Wattage Lumens Colour Temperature Dimmable
AU-MPRO5/30 7 500 3000 Yes
AU-MPRO5/40 7 530 4000 Yes
SKU Code Description
AU-AP600 mPro™ and m10™ Adaptor Plate
AU-BZ600 mPro™ and m10™ Bezel
AU-BZ601 mPro™ and m10™ IP65 Square Bezel
AU-BZ603 mPro™ and m10™ Bezel
AU-BZ605 mPro™ and m10™ Slim Bezel
AU-FRLM10EM 3 Hour Maintained Emergency Pack
AU-MPROTL mPro™ Trimless Bezel
Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility
DOWNLOADS
All IES/LDT Files
AU-MPRO5/30
LDT
AU-MPRO5/40
LDT
Features & Benefits
Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
60° lens supplied
FastRFix™ rapid install system connector included
IC cap included
ErP compliant - High colour rendering index (Ra) >80
Separate emergency pack available - AU-FRLM10EM
Rated to 30, 60 & 90 minute fire ceilings
BS EN 1365-2: 2014 (Fire resistance)
BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (Acoustics)
(L70) at a 40,000 hour lifetime
BS EN 13141-1:2004 (Air leakage)
5 Year Warranty
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.85
IP Rating
IP65
Overall Diameter (mm)
88
Height (mm)
120
Recess Depth (mm)
76
Cutout Diameter Min. (mm)
65
Cutout Diameter Max. (mm)
72
  • L2 Compliant
    L2 Compliant
  • RoHS
    RoHS
  • LED Light Source
    LED Light Source
  • 240V
    240V
  • ENEC
    ENEC
  • CE
    CE
  • L1 Compliant
    L1 Compliant
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • IP65
    IP65
  • Dimmable
    Dimmable



A versatile lock and release electrical connector allowing for easier installation with a screwless cover and cable clamp allowing for quicker installation with large terminals for the ease of wiring
LEDchroic™ anti-glare lens technology accurately simulates the light output from traditional dichroic reflector. Aesthetically, it looks exactly like a dichroic halogen when on or off
