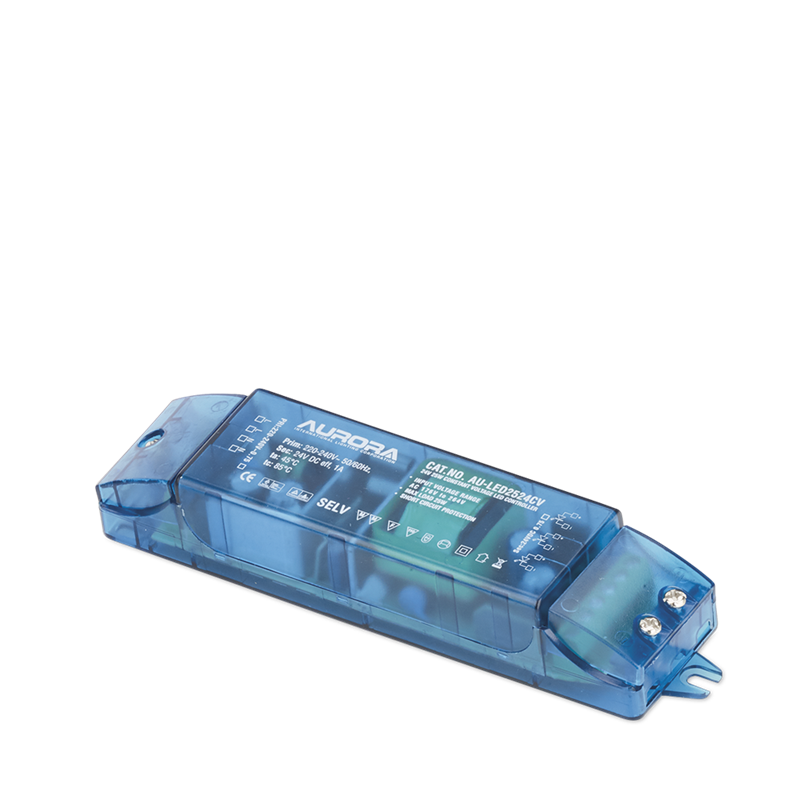

25W Non-Dimmable 24V Constant Voltage Driver

24V DC output. For the supply of low voltage LED lamps.

Spec Sheet


  • Registered Community Design 001886730
  • For the supply of low voltage LED lamps
  • 24V DC output
  • Overload protection
  • Short circuit protection
  • Thermal protection
  • Secondary wiring terminals - 3 outputs
  • Loop-in, loop-out primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance – EN 61347
  • EMC compliance – EN 55015, EN 61000, EN 61547
  • Non-dimmable
  • Parallel wiring only
  • 3 Year Warranty - see www.auroralighting.com for details
SKU Code Wattage
AU-LED2524CV 25

Input Voltage (Min)
220
Input Voltage (Max)
240
Input Voltage Type
AC
Height (mm)
28
Length (mm)
169
Dimmable
No
Positional Adjustment
Fixed
