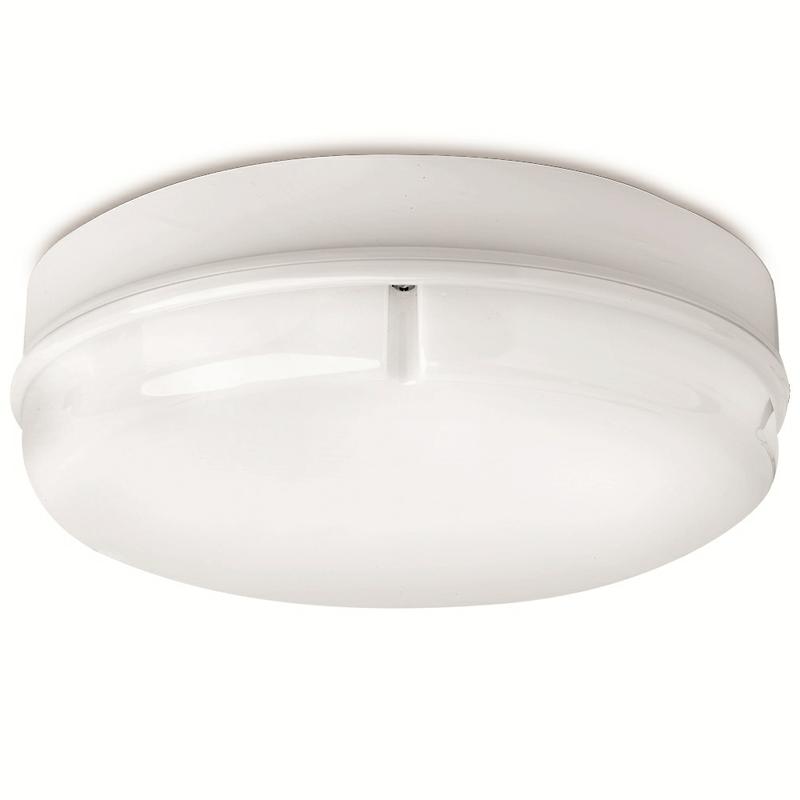

15W IP65 Microwave Sensor Bulkhead

Spec Sheet


  • IP65 Polycarbonate LED Bulkhead
  • 3 Hour maintained emergency back-up option (AU-BH104EM, AU-BH105EM)
  • Microwave sensor option (AU-BH104MS, AU-BH105MS) available
  • Customisable 5m detection range on microwave sensor. 30 degrees - 150 degrees detection angle
  • 400W maximum load on microwave sensor
  • Microwave sensor uses 0.6W in standby mode, 1.2W in operation
  • Hold time on microwave sensor can be adjusted from 5 seconds - 25 minutes
  • Life not affected by frequent switching e.g. when used with occupancy controls
  • Tough polycarbonate body for vandal resistance
  • Opal diffuser
  • Supplied with white and polished chrome trims
  • Wall or ceiling mounting
  • 20mm conduit entries
  • Emergency version has integral 3 hour battery back-up
  • Non-dimmable
  • Life to 70% lumen maintenance (L70) - 25,000 hours
  • 3 Years Warranty - *see www.auroralighting.com for details

Input Voltage (Min)
240
Input Voltage (Max)
240
IP Rating
IP65
Height (mm)
83
Lifetime (Hours)
50000
Dimmable
No
Overall Diameter (mm)
280

Download

Instruction Leaflet
