Axio Linium Suspension kit with 2m Wire and Top Hat

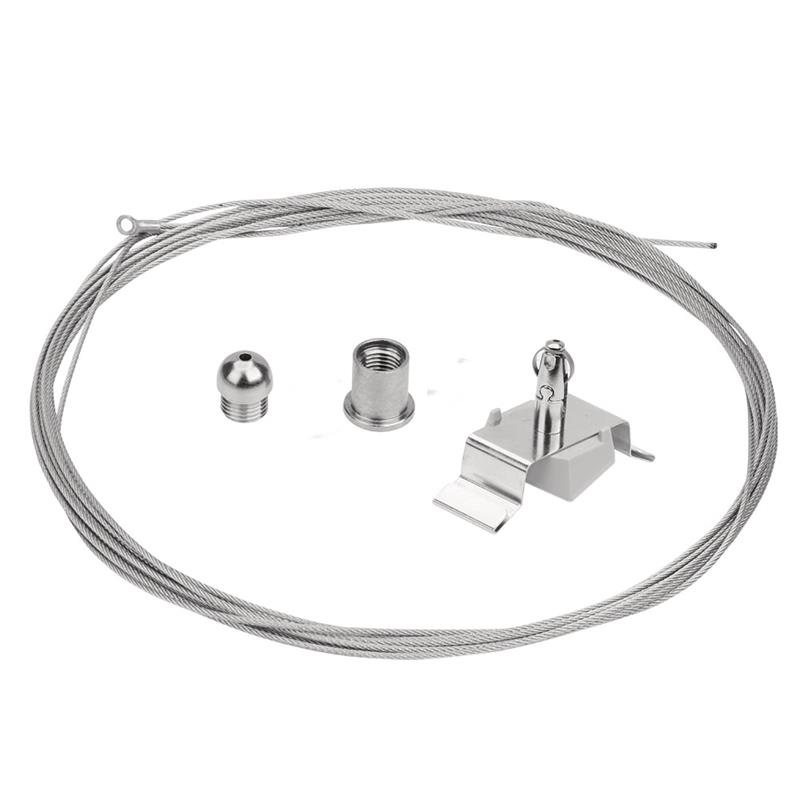

Axio Linium Suspension kit with 2m wire (with eyelet) and Top Hat fixing accessory. Kit of all the parts needed to suspend one luminaire. Includes two suspension clips (with locking devices), two lengths of wire with eyelet on one end, and two top hat fixtures. Two methods of install are possible. Either thread wire through top hat and attach it to the ceiling, or since the wire has eyelet, it can be looped over weight bearing structures e.g. girders or rafters. Two methods of install are possible. Either thread wire through top hat and attach it to the ceiling, or since the wire has eye hook, it can be looped over weight bearing structures e.g. girders or rafters.

Spec Sheet


  • Suspension height adjusted using clutch on top of the clip, near the luminaire
  • Clip can be attached to luminaire without the use of tools
  • Locking device prevents removal of clip, for safety, but still allows clip to be positioned along the luminaire, for ease of install
SKU Code
AL-SUS02-W-TH

Height (mm)
2000
Length (mm)
86
