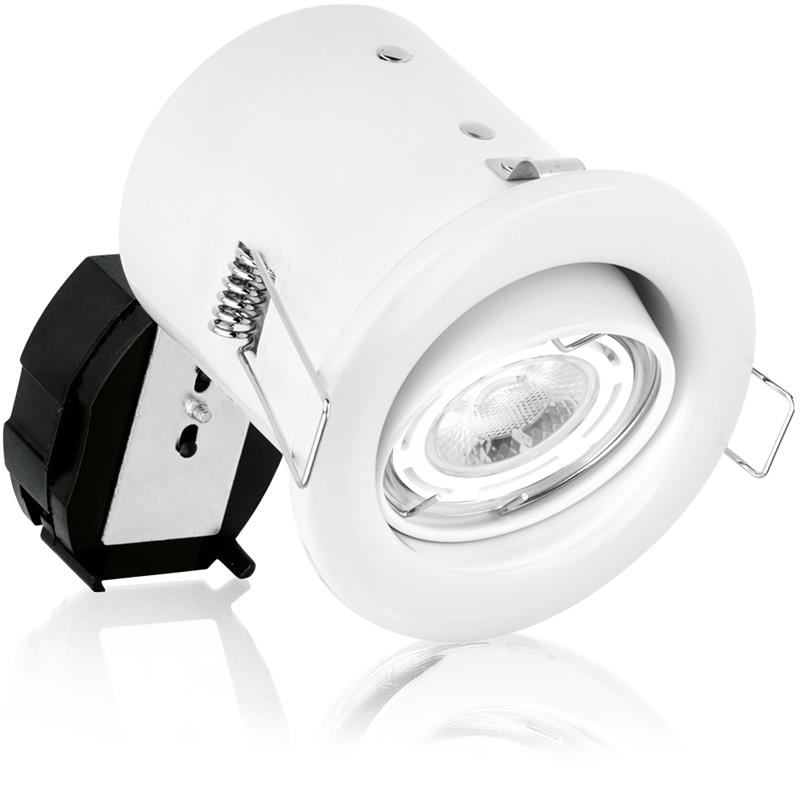

GU10 Adjustable Fire Rated Downlight

Adjustable GU10 Spring Clip Fire Rated Downlight with an integrated intumescent material that completely seals the downlight and cut-out in the event of a fire. Downlight has been tested in 30, 60 and 90 minute fire rated ceilings. Suitable for Halogen, CFL and LED GU10 lamps.

Spec Sheet


  • Integrated intumescent material completely seals the downlight and cut-out in the event of a fire
  • Not for use with dichroic halogen (cool beam) lamps
  • Tested in 30, 60 & 90 minute fire rated ceilings
  • Tested to BS476 Part 21
  • Supplied with GU10 lamp holder fitted
  • Reduced height fire rated can allows installation in shallow ceiling voids
  • Lamp not included

AU-0501F MR16 Lampholder with 21cm tails
Input Voltage (Min)
220
Input Voltage (Max)
240
Input Voltage Type
AC
IP Rating
IP20
Cutout Diameter Min. (mm)
75
Recess Depth (mm)
115
Dimmable
Yes
Positional Adjustment
Adjustable
Overall Diameter (mm)
90

Download

Instruction Leaflet
