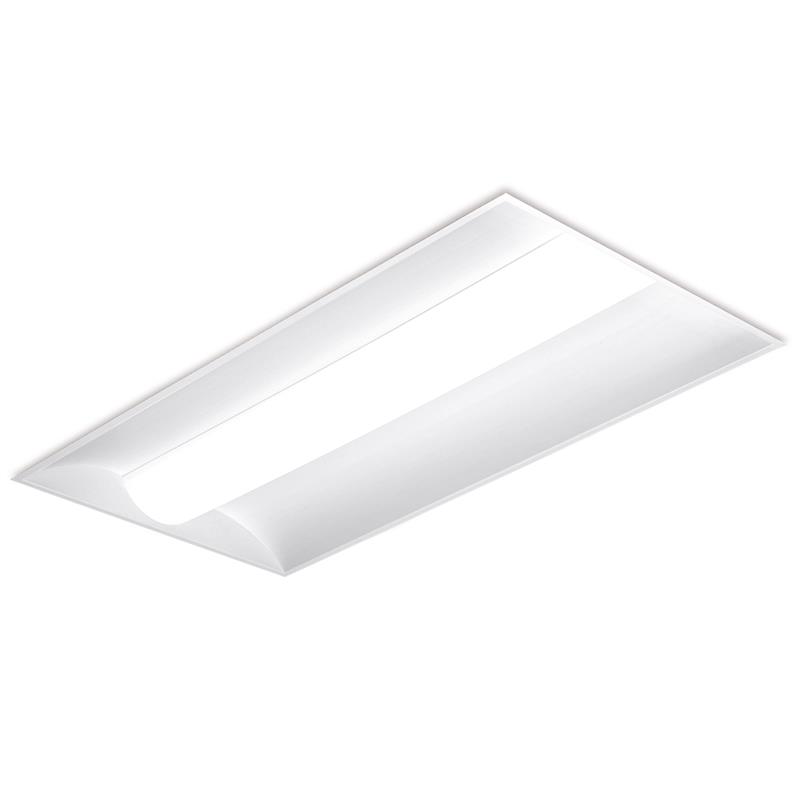

VersiLite™ 40W 2' x 4' Dimmable 0-10V Troffer

The VersiLite Troffer features high efficiency, quality and performance achieving up to 125lm/w. These luminaires are designed with the latest LED technology to produce highly efficient lighting, which provides pleasant and uniform light distribution. The VersiLite have a clean, modern look and an even distribution which makes them an ideal solution for either drop ceilings in offices, schools, hospitality and other commercial applications. The Aurora Troffer offers lower power consumption, longer life, 0-10V dimming and zero maintenance (no re-lamping required) than the standard fluorescent fixture and are therefore an excellent energy efficient replacement. IES files available on the Aurora website.

Spec Sheet


  • A range of high energy-efficiency LED Troffers for office and commercial lighting applications
  • Suitable for installation in T-bar suspended ceilings.
  • Easy installation & maintenance free
  • Optical polycarbonate diffuser, for even light distribution with 120° beam angle
  • Total depth including the driver box 3.93"
  • CRI>80
  • High power factor - 0.90
  • Aurora’s dimmable panels provide a simple 0-10V solution that is compatible with stand alone 0-10V dimmers as well as larger lighting control systems and allows for installation with daylight or occupancy sensors
  • Operating temperature -4°F to 104°F
  • Available color temperatures 3500K, 4000K, 5000K
  • Suitable for damp locations
  • DLC Premium (DesignLights Consortium®) certified
  • (L70) at 50,000 hour lifetime
  • 5 Year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
AR-TF2440BD/35 40 5000 3500 80
IES
AR-TF2440BD/40 40 5000 4000 80
IES
AR-TF2440BD/50 40 5000 5000 80
IES

DALI
No
Input Voltage (Min)
100
Input Voltage (Max)
277
Power Factor
0.9
Input Voltage Type
AC
IP Rating
Damp Location
Recess Depth (Inches)
3.93
Height (Inches)
3.93
Length (Inches)
47.91
Lifetime (Hours)
50000
Width (Inches)
23.7
Dimmable
Yes
Positional Adjustment
Fixed

Download

Instruction Leaflet
