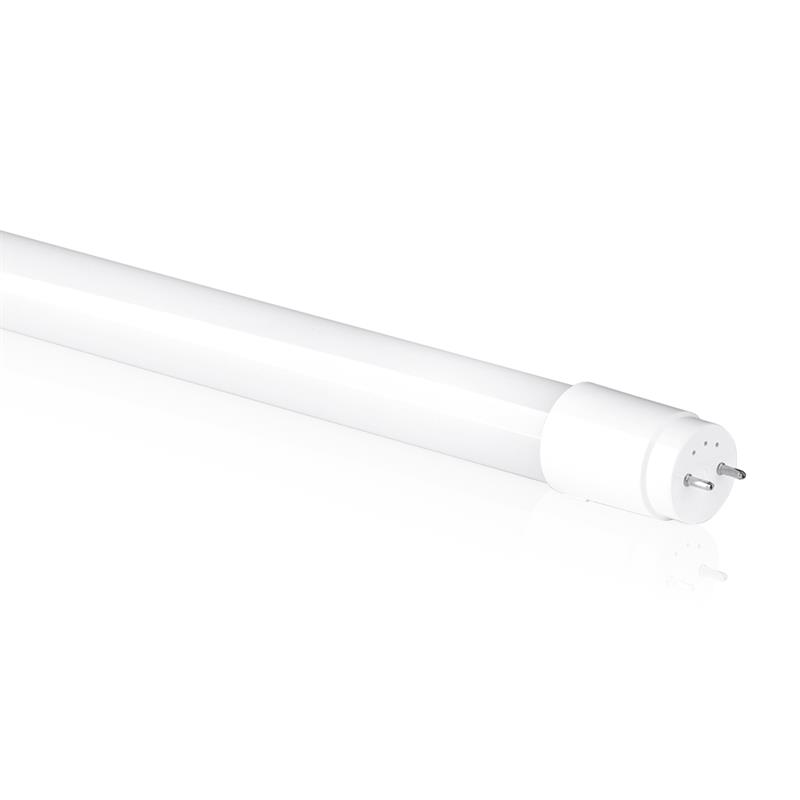

T8 Simply Fit-Hybrid Tube

The T8 Simply Fit-Hybrid LED Tube provides a simple retrofit solution for those that want to benefit from the savings of an LED tube without the time and investment associated with removing the existing ballasts and re-wiring each fixture. Compatible with Instant Start Electronic, Rapid Start and Program Start. The Simply Fit-Hybrid can also be used as a bypass tube wiring directly to the mains, providing dual functionality. The Simply Fit-Hybrid LED tubes are some of the safest on the market with both shock hazard protection for the installer and surge protection to protect the tube. Coupled with low wattage T8 tubes offer a short payback on investment. IES files available on the Aurora website.

Spec Sheet


  • Compatible with a range of Electronic, rapid start, programme start and Magnetic Ballasts
  • Please visit us.auroralighting.com/Support/Product-Support for full compatibility list
  • Suitable as a ballast bypass with direct wire to mains
  • No danger of electric shock from the lamp pins during installation
  • All electronic ballasts and PFC capacitors must be removed from the circuit
  • Glass Tube
  • High power factor 0.9
  • High Color Rendering - CRI>80
  • Instant start, no flickering, no buzzing
  • Non-dimmable
  • Suitable for damp locations, IP44
  • DLC (DesignLights Consortium®) certified
  • (L70) at 50,000 hour lifetime
  • 5 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
AR-T8G184FFR/40 18 2340 4000 80
IES
AR-T8G184FFR/50 18 2340 5000 80
IES

Input Voltage (Min)
100
Input Voltage (Max)
277
Power Factor
0.9
Input Voltage Type
AC
IP Rating
Damp Location
Lifetime (Hours)
50000
Overall Diameter (Inches)
1.14
Dimmable
No

Download

Instruction Leaflet
