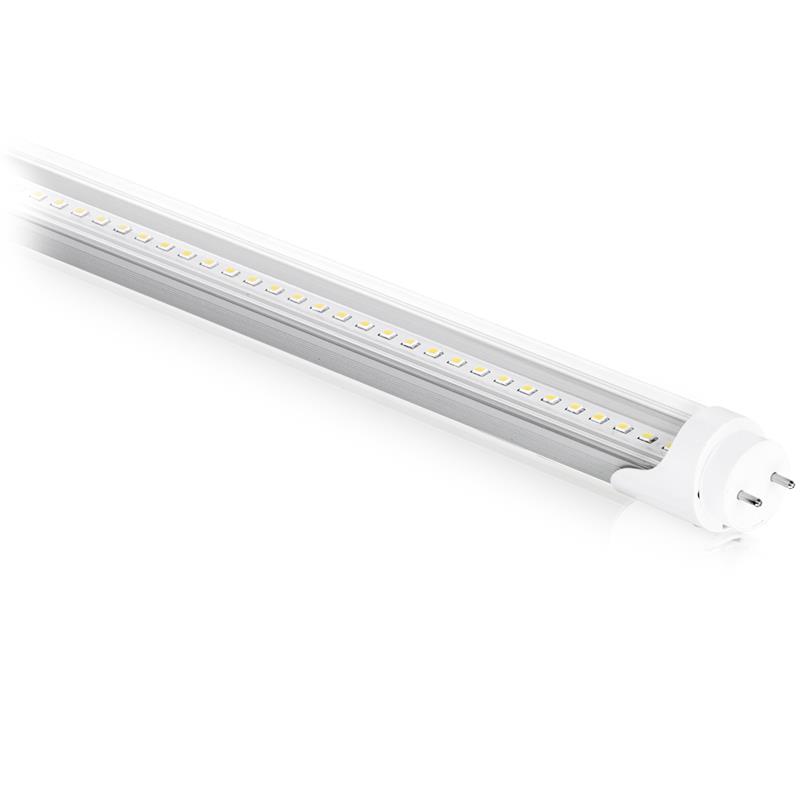

T8 18W 4" Tube

The Aurora T8 LED tubes are an excellent low-energy alternative, requiring minimal maintenance and have an extended lifespan compared to their conventional fluorescent counterparts. These energy saving tubes are easy to install and can be used in a wide range of ambient temperature zones. The Aurora T8 LED tubes are some of the safest on the market with both shock hazard protection for the installer and surge protection to protect the tube. Coupled with lower wattage, the DLC (DesignLights Consortium®) qualified T8 LED tubes give a short payback on investment.

Spec Sheet


  • LED T8 tube has a dedicated internal driver and is suitable to replace T8 fluorescent lamps in fixtures containing standard non-shunted rapid start G13 (medium bi-pin) sockets
  • No danger of electric shock from the lamp pins during installation
  • For maximum energy savings, bypass the magnetic ballast (electronic ballast MUST be bypassed)
  • Aluminum back for heatsinking of LEDs
  • Overall length: 4’
  • Impact resistant clear or frosted polycarbonate diffuser
  • High power factor 0.98
  • High Color Rendering - CRI>80
  • Non-dimmable
  • Beam angle: 120°
  • Instant start, no flickering, no humming
  • RoHS compliant
  • DLC (DesignLights Consortium®) qualified
  • Life to 70% lumen maintenance – 50,000 hours
  • 5 Year warranty
  • Suitable for dry locations
SKU Code Wattage Lumens Colour Temp (K) Ra Download
AR-T818D1FFR/35 18 1650 3500 80
IES

Input Voltage (Min)
100
Input Voltage (Max)
277
Power Factor
0.98
Input Voltage Type
AC
IP Rating
Dry Location
Lifetime (Hours)
50000
Overall Diameter (Inches)
1.02
Dimmable
No

Download

Instruction Leaflet
