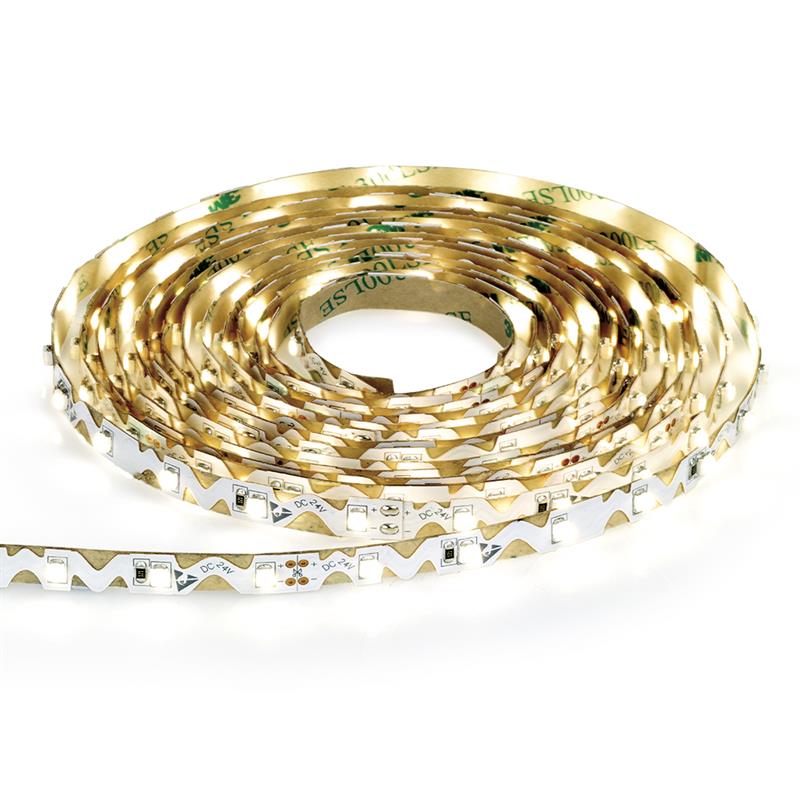

2.2W CRI90 Bendable Tape

24V DC single color, bendable CRI>90 LED strip with self-adhesive backing (Always apply to clean surfaces). Perfect for retail applications where higher color rendering is needed to distinguish and enhance certain colors. With a beam angle of 120° individual light points are less visible creating a continuous glow. The strip has cut points every 3.93" / 100mm for maximum flexibility what length is concerned. Maximum run of 32.8ft / 10m, any length over 32.8ft / 10m must be run in parallel. Low power consumption of 2.2W per foot. A 24V DC Constant Voltage LED driver is required (see driver options table). Reel Length 49ft / 15m. Dimmable with 0-10V and MLV Dimmers with the suitable Aurora driver offering. IES files available on the Aurora website. 3 year warranty.

Spec Sheet


  • Single colour flexible LED strip with self adhesive backing (must be applied to clean surfaces)
  • Cut points every 100mm
  • 17mm between LEDs
  • Beam angle 120º
  • Maximum length of run 10m
  • For runs over 10m individual lengths should be connected in parallel
  • Requires 24V DC Constant Voltage LED driver
  • Very low power consumption - 7.2W per metre
  • Dimmable with 0-10V Dimmer.
  • Please order to the nearest foot. (Reel length 49' / 13m)
  • 3 Year Warranty - see www.auroralighting.com for details
SKU Code Wattage Lumens Colour Temp (K) Ra Efficacy (LL/CW) Download
AR-ST905/30 2.2 173 3000 90
IES
AR-ST905/40 2.2 183 4000 90 83
IES
AR-ST905/60 2.2 198 6000 90 90
IES

AR-STCN105 12V / 24V Single Colour Tape Connector
AR-STIL102 12V / 24V 4" Tape Interconnection Lead
AR-STIL103 12V / 24V 1" Tape Interconnection Lead
AR-STPL101 12V / 24V 1' Tape Power Lead
AR-STPL104 12V / 24V 4" Tape Power Lead T-Connector
Input Voltage (Min)
24
Input Voltage (Max)
24
Input Voltage Type
DC
IP Rating
Dry Location
Height (Inches)
0.08
Lifetime (Hours)
30000
Width (Inches)
0.31
Dimmable
Yes
Positional Adjustment
Fixed

Download

Instruction Leaflet
