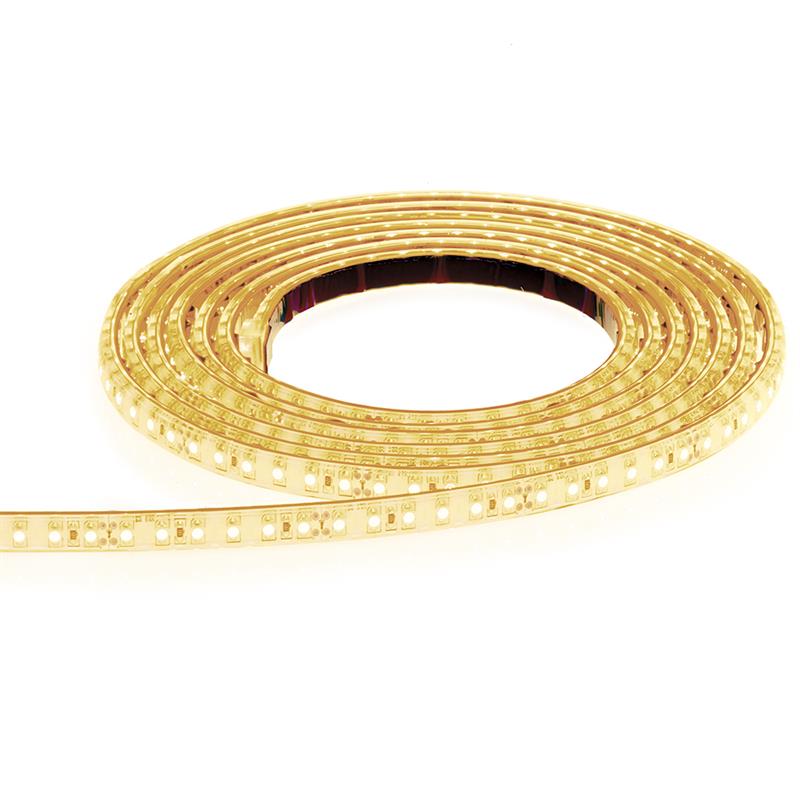

Single Color Flexible High Density Wet Location Tape

12V DC single color, flexible LED tape with 3M self-adhesive tape. Distance between LEDs of 0.3'' / 8.3mm and cut point every 3 LEDs (0.98'' / 25mm). Very low power consumption of 2.9W per ft. Requires 12V DC Constant Voltage LED driver. Multi-purpose LED tape that can be used for accent and architectural highlighting in both indoor and outdoor applications. Maximum run of 32.8ft / 10m, any length over 32.8ft / 10m must be run in parallel. Low power consumption of 2.9W per foot. A 12V DC Constant Voltage LED driver is required (see driver options table). Reel Length 16ft / 4.87m. Dimmable with 0-10V and MLV Dimmers with the suitable Aurora driver offering. IES files available on the Aurora website. 3 year warranty.

Spec Sheet


  • High density single color flexible LED tape with 3M self-adhesive tape
  • Twice as many LED's per 3.28ft / 1m as standard LED tape
  • Ideal for fast installation into many applications including signs, displays and pelmets
  • Beam angle 120º
  • Cut point every 3 LEDs (0.98" / 25mm)
  • Voltage drop of 1V per 4ft / 1.2m
  • 0.3" / 8.3mm between LEDs
  • For runs over 16.4ft / 5m individual lengths should be connected in parallel**
  • Very low power consumption - 2.9W per ft / 9.5W per m
  • Copper track for effective heat dissipation and long life
  • Requires 12V DC constant voltage LED driver
  • Suitable for wet locations / IP65
  • No UV, No Mercury
  • Dimmable with 0-10v Dimmer.
  • Please order to the nearest foot (16' on a roll)
  • 3 Year warranty
SKU Code Wattage Lumens Efficacy (LL/CW) Colour Temp (K) Ra Download
AR-ST324/27 2.9 145 50 2700 80
IES
AR-ST324/35 2.9 145 3500 80
AR-ST324/65 2.9 145 50 6500 80
IES
AR-ST324BLU 2.9 54 19
IES

AR-ST324CK AR-ST324 Connector Kit
AU-CH105 Deep Profile
AU-CH105EC1 Channel End Cap
AU-CH105EC2 Cable Entry Channel End Cap
AU-CHPC2FR Frosted Diffuser Cover
Input Voltage (Min)
12
Input Voltage (Max)
12
Input Voltage Type
DC
IP Rating
Wet Location
Height (Inches)
0.2
Lifetime (Hours)
30000
Width (Inches)
0.47
Dimmable
Yes

Download

Instruction Leaflet
