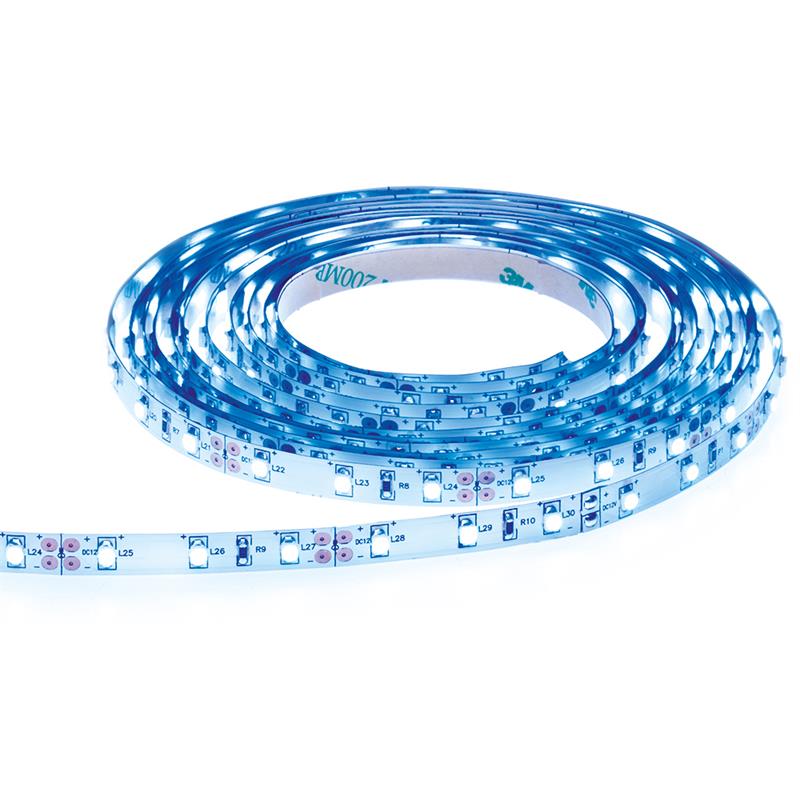

Single Colour Flexible Tape

12V DC single color, flexible LED tape with 3M self-adhesive tape. Distance between LEDs of 0.6'' / 16.6mm and cut points every 3 LEDs (2.0'' / 50mm). Very low power consumption of 1.5W per ft. Requires 12V DC Constant Voltage LED driver. Multi-purpose LED tape that delivers discreet illumination with a small profile. Maximum run of 32.8ft / 10m, any length over 32.8ft / 10m must be run in parallel. Very low power consumption of 1.5W/ft. A 12V DC Constant Voltage LED driver is required (see driver options table). Reel length 16ft / 4.87m. Dimmable with 0-10V and MLV Dimmers with the suitable Aurora driver offering. IES files available on the Aurora website. 3 year warranty.

Spec Sheet


  • Single color flexible LED tape with 3M self-adhesive tape
  • Multi-purpose, field-cuttable LED tape that delivers illumination that is discreet with a small profile
  • Beam angle 120°
  • Cut point every 3 LEDs (2.0" / 50mm)
  • Voltage drop of 1V per 4ft / 1.2m
  • 0.6" / 16.6mm between LEDs
  • 16" Per Roll
  • For runs over 16.4ft / 5m individual lengths should be connected in parallel**
  • Very low power consumption - 1.5W per ft / 4.9W per m
  • Copper track for effective heat dissipation and long life
  • Requires 12V DC Constant Voltage LED driver
  • Dimmable with 0- 10v Dimmer
  • Suitable for dry locations
  • No UV, No Mercury
  • Please order to the nearest foot
  • 3 Year warranty
SKU Code Wattage Lumens Efficacy (LL/CW) Colour Temp (K) Ra Download
AR-ST100/27 1.5 90 60 2700 80
IES
AR-ST100/35 1.5 90 60 3500 80
IES
AR-ST100/65 1.5 90 6500 80
IES
AR-ST100BLU 1.5 30 20

AR-STCN105 12V / 24V Single Colour Tape Connector
AR-STIL102 12V / 24V 4" Tape Interconnection Lead
AR-STIL103 12V / 24V 1" Tape Interconnection Lead
AR-STPL101 12V / 24V 1' Tape Power Lead
AR-STPL104 12V / 24V 4" Tape Power Lead T-Connector
AU-CH100 Surface Profile
AU-CH100EC1 Channel End Cap
AU-CH100EC2 Cable Entry Channel End Cap
AU-CH101 Surface Profile
AU-CH101EC1 Channel End Cap
AU-CH101EC2 Cable Entry Channel End Cap
AU-CH102 Recessed Profile
AU-CH103 Recessed Profile
AU-CH103EC1 Channel End Cap
AU-CH103EC2 Cable Entry Channel End Cap
AU-CH104 Corner Profile
AU-CH104EC1 Channel End Cap
AU-CH104EC2 Cable Entry Channel End Cap
AU-CH105 Deep Profile
AU-CH105EC1 Channel End Cap
AU-CH105EC2 Cable Entry Channel End Cap
AU-CHC1 Channel Mounting Clip
AU-CHC2 Channel Mounting Clip
AU-CHPC1CL Clear Diffuser Cover
AU-CHPC1FR Frosted Diffuser Cover
AU-CHPC2FR Frosted Diffuser Cover
Input Voltage (Min)
12
Input Voltage (Max)
12
Input Voltage Type
DC
IP Rating
Dry Location
Height (Inches)
0.07
Lifetime (Hours)
30000
Width (Inches)
0.32
Dimmable
Yes

Download

Instruction Leaflet
