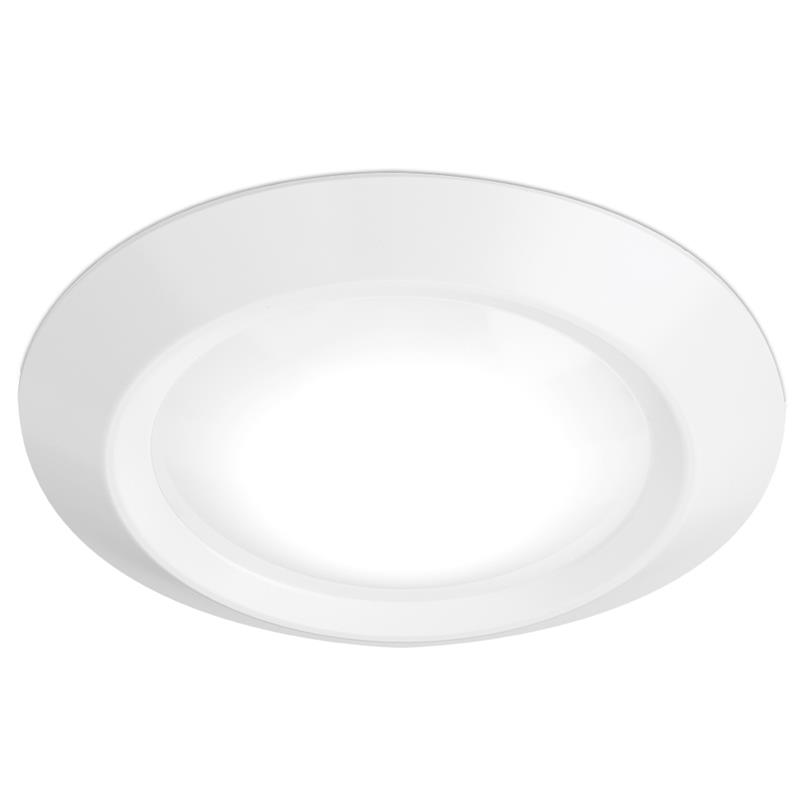

Esofit Plus 15W 5-6" Surface Mount Trim

Designed to service the needs of the residential/commercial market, the Aurora Esofit Plus surface mount retrofit 5-6" trim is ideal for replacing existing incandescent, fluorescent and halogen lights with their superior high powered low wattage LEDs with CRI>90 for true color rendering. The Esofit Plus installs easily into most Junction Boxes and 5-6" recessed CANs, including IC and NON-IC housings offering great versatility between different project requirements. Compatible with most line voltage dimmers. IES files available on the Aurora website.

Spec Sheet


  • Fits most Junction boxes and 5- 6'' CANS
  • Light aluminum body with ventilation slot for superior heat dissipation
  • Easy installation - E26 socket & quick connector
  • 120V inline voltage dimmable
  • Power factor >0.9
  • IC rated (when used with an IC rated CAN)
  • Compression springs provided within the pack
  • High Color Rendering of CRI>90
  • Suitable for use in Wet locations
  • Energy Star accredited
  • Title 24 High Energy compliance for California
  • (L70) at 40,000 hour lifetime
  • 5 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
AR-SMDLA56/27 15 950 2700 90
AR-SMDLA56/30 15 1045 3000 90
AR-SMDLA56/40 15 1045 4000 90

Cutout Diameter Min. (Inches)
3.97
Cutout Diameter Max. (Inches)
5.97
DALI
No
Input Voltage (Min)
120
Input Voltage (Max)
120
Power Factor
0.90
Input Voltage Type
AC
IP Rating
Wet Location
Height (Inches)
1.3
Lifetime (Hours)
40000
Overall Diameter (Inches)
7.27
Dimmable
Yes
Positional Adjustment
Fixed
