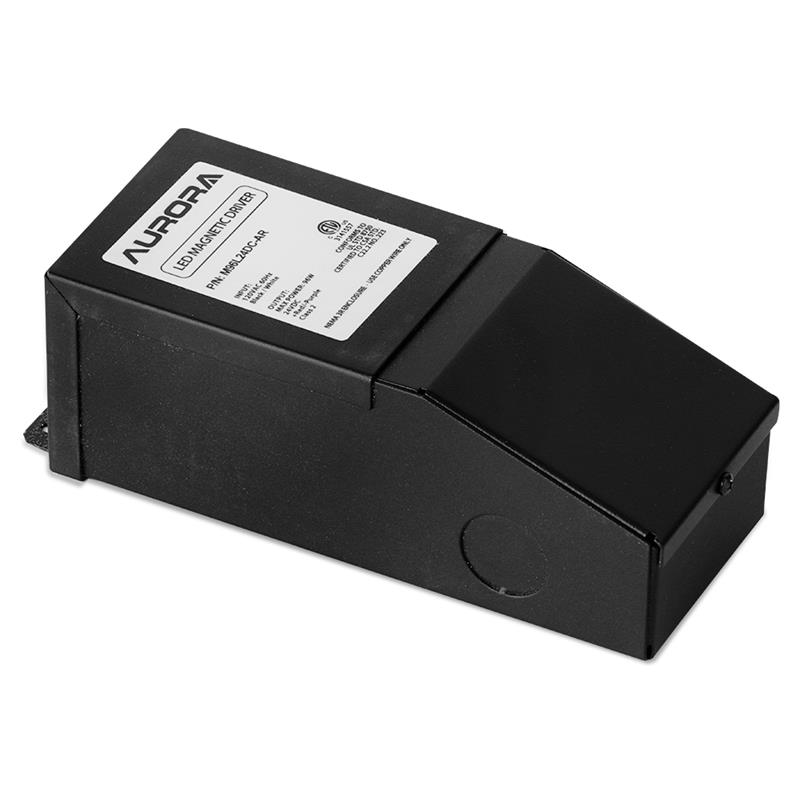

96W 24V DC Magnetic Dimmable LED Driver

Aurora's new robust dimmable drivers are suitable for working with any standard MLV dimmer and are a great addition to the LED strip portfolio offering versatility and a proven dimming method. The new driver range includes a junction box enabling simple connection and a tidy installation. The range includes 60W at 12V DC, 60W and 96W at 24V DC.

Spec Sheet


  • Dimmable with any standard MLV (Leading edge) dimmer
  • Dual protection - primary and secondary auto-reset circuit breakers
  • Two knock-outs one on each side
  • Nema 3R Enclosure - Outdoor use
  • 5 Year Warranty
SKU Code
AR-M96L24DC-AR

Input Voltage (Min)
120
Input Voltage (Max)
120
Power Factor
0.82
Input Voltage Type
AC
IP Rating
Wet Location
Height (Inches)
2.25
Length (Inches)
6.54
Width (Inches)
2.55
Dimmable
Yes
