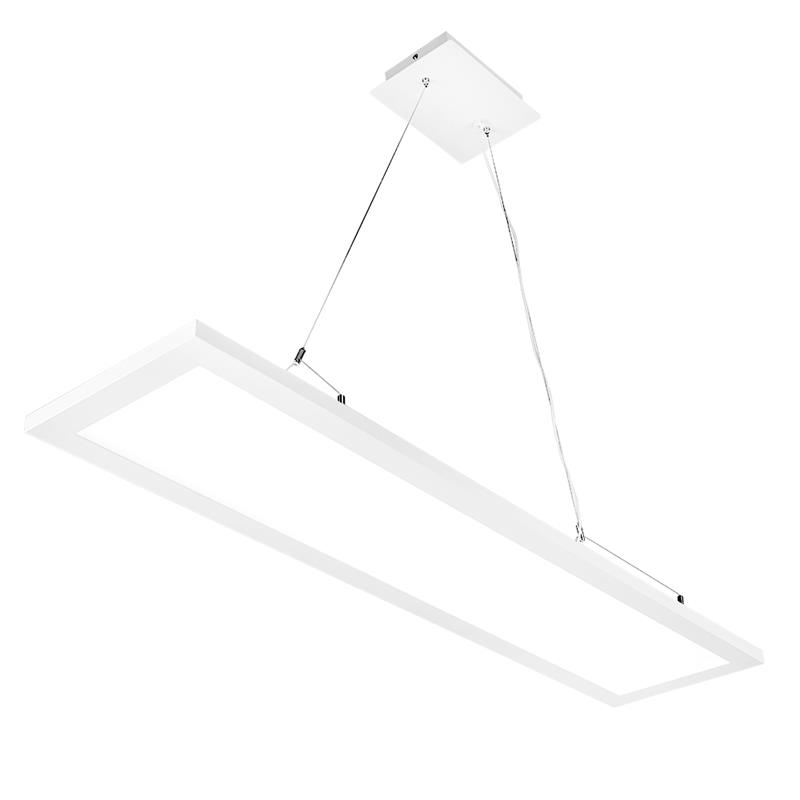

Versitile™ 36W 1' x 4' 0-10V Dimmable Up/Down Panel

The new Versitile suspended edge-lit LED light panels with 60% down and 40% upward light distribution offer a fantastic architectural solution offering a subtle uplight offering all round lighting solutions. Fitted with high transmission diffuser for minimal glare. A chunky and robust white frame with a 0-10V Driver and suspension box provided as standard.

Spec Sheet


  • A range of high energy-efficiency edge-lit LED flat panels for office and commercial lighting applications
  • Suspension kit supplied as standard with the panel
  • PMMA light guide and PS diffuser, for even light 60% functional light and 40% uplighting to create overall feeling of space and light
  • White profile frame – depth just 1.18”
  • Adjustable length of suspension allowing a drop of around 47" as standard and positioning of suspension wire along the length of the panel allows for minor adjustments
  • CRI>80
  • High power factor - 0.90
  • Aurora’s dimmable panels provide a simple 0-10V solution that is compatible with stand alone 0-10V dimmers as well as larger lighting control systems and allows for installation with daylight or occupancy sensors
  • Compatible with Lutron 0-10V Dimmers
  • Operating temperature -4°F to 104°F
  • Suitable for damp locations
  • Available color temperatures 3500K, 4000K, 5000K
  • DLC (DesignLights Consortium®) certified
  • (L70) at 50,000 hour lifetime
  • 5 Year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
AR-LPUD1436/35 36 3780 3500 80
AR-LPUD1436/40 36 3780 4000 80
IES
AR-LPUD1436/50 36 3780 5000 80
IES

Input Voltage (Min)
100
Input Voltage (Max)
277
Power Factor
0.90
Input Voltage Type
AC
IP Rating
Damp Location
Height (Inches)
0.9
Length (Inches)
46.96
Lifetime (Hours)
50000
Width (Inches)
11.59
Dimmable
Yes
