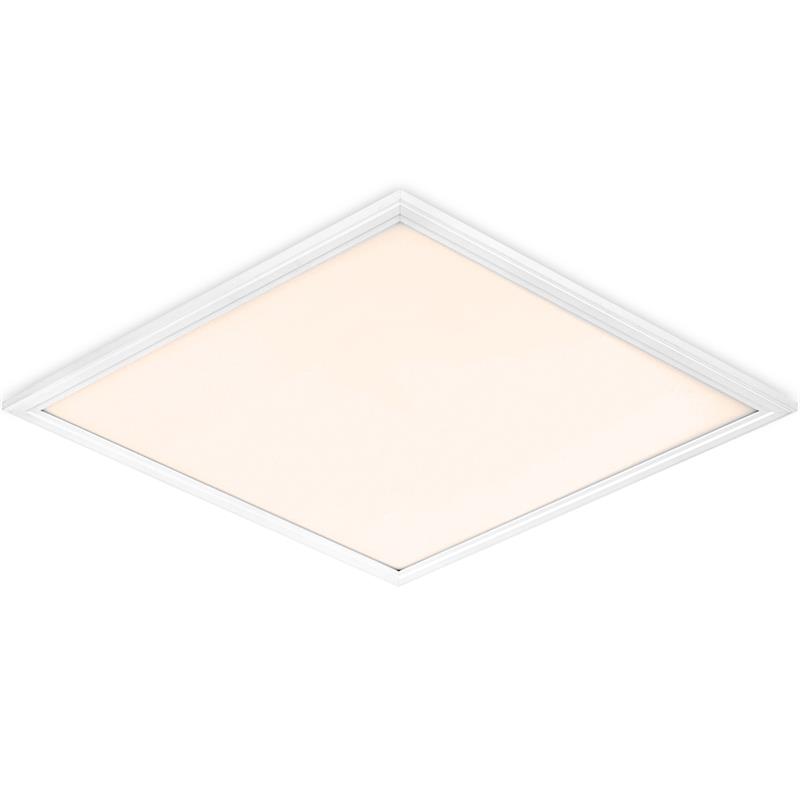

40W 2' x 2' Dimmable Panel

The Aurora ultra-thin LED panels feature high efficiency, quality and performance. These luminaires are designed with edge-lit technology to produce highly efficient lighting, which provides pleasant and uniform light distribution with minimal glare. The luminaires have a clean, modern look and the ultra-thin profile makes them unique and an ideal solution for either drop ceilings or suspended in offices, schools, hospitality and other commercial applications. Their high CRI is ideal for retail stores and showrooms where natural color rendering is essential. The Aurora edge-lit flat panels offer lower power consumption, longer life, dimming option and lower overall maintenance (no re-lamping required) than the standard fluorescent fixture and are therefore an excellent energy efficient replacement. The DLC (DesignLights Consortium®) qualified Aurora edge-lit flat panels are available with a number of options and accessories for application versatility.

Spec Sheet


  • A range of high energy-efficiency edge-lit LED flat panels for office and commercial lighting
  • Suitable for installation in T-bar suspended ceilings. Optional surface mount or suspension kit accessories are available.
  • Ease of install & maintenance
  • Optical polycarbonate diffuser for even light distribution
  • Ultra-thin white profile – depth just 0.47”
  • CRI > 80
  • High power factor - 0.99
  • Aurora’s dimmable panels provide a simple 0-10v solution that is compatible with stand alone 0-10v dimmers as well as larger lighting control systems.
  • DLC (DesignLights Consortium®) qualified
  • Suitable for damp locations
  • (L70) at 50,000 hour lifetime
  • 5 Year warranty

Input Voltage (Min)
100
Input Voltage (Max)
277
Power Factor
0.99
Input Voltage Type
AC
IP Rating
Damp Location
Recess Depth (Inches)
1.73
Height (Inches)
0.47
Length (Inches)
23.58
Lifetime (Hours)
50000
Width (Inches)
23.58
Dimmable
Yes
