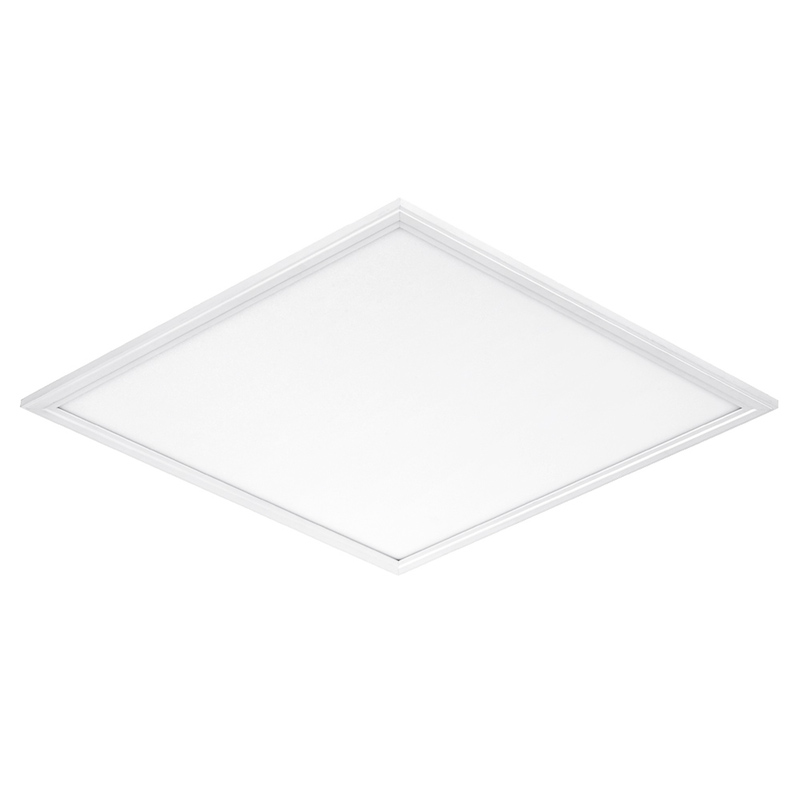

40W 2' x 2' Panel

The Aurora next generation ultra-thin LED panels feature high efficiency, quality and performance. These luminaires are designed with edge-lit technology to produce highly efficient lighting, which provides pleasant and uniform light distribution with no glare. The luminaires have a clean, modern look and the ultra-thin profile makes them unique and an ideal solution for either drop ceilings or suspended in offices, schools, hospitality and other commercial applications. Their high CRI is ideal for retail stores and showrooms where natural color rendering is essential. The Aurora edge-lit flat panels offer lower power consumption, longer life, dimming option and lower overall maintenance (no re-lamping required) than the standard fluorescent fixture and are therefore an excellent energy efficient replacement. The DLC (DesignLights Consortium®) qualified Aurora edge-lit flat panels are available with a number of options and accessories for application versatility.

Spec Sheet


  • A range of high energy-efficiency edge-lit LED flat panels for office and commercial lighting
  • Suitable for installation in T-bar suspended ceilings. Optional surface mount or suspension kit accessories are available.
  • Ease of install & maintenance
  • Optical polycarbonate diffuser for even light distribution
  • Ultra-thin white profile – depth just 0.47”
  • CRI > 80
  • High power factor - 0.99
  • Dimmable & non-dimmable versions available
  • DLC (DesignLights Consortium®) qualified
  • Suitable for damp location
  • Life to 70% lumen maintenance – 50,000 hours
  • 5 Year warranty

Input Voltage (Min)
100
Input Voltage (Max)
277
Power Factor
0.99
Input Voltage Type
AC
IP Rating
IP44
Recess Depth (Inches)
1.73
Height (Inches)
0.47
Length (Inches)
23.58
Lifetime (Hours)
50000
Width (Inches)
23.58
Dimmable
No

Download

Instruction Leaflet
