VersiTile™
Spec Sheet

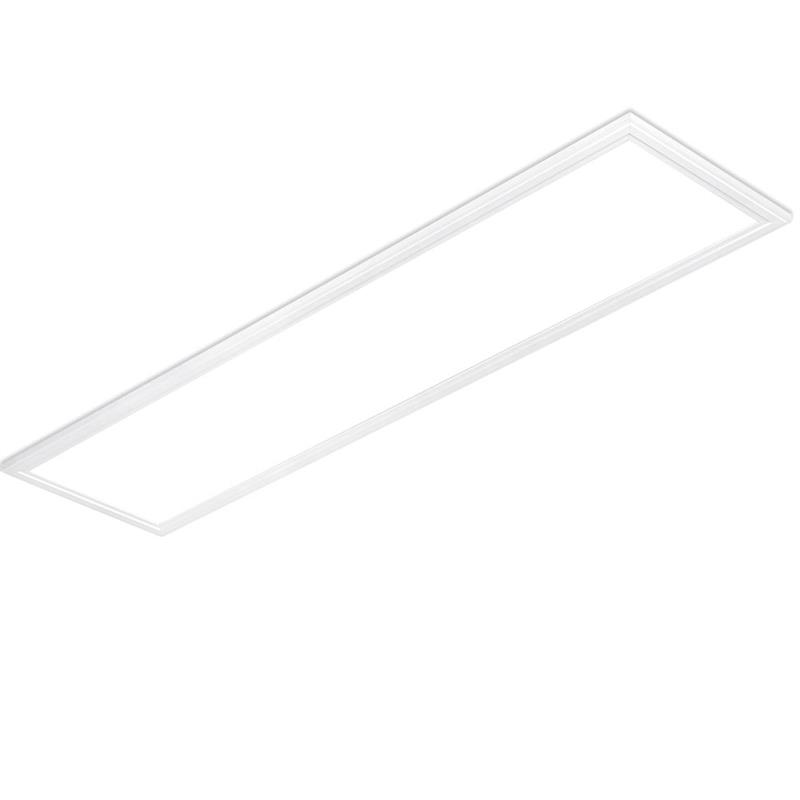

Versitile™ 40W 1' x 4' Dimmable Panel



The Aurora Generation 3 ultra-thin LED panels feature high efficiency, quality and performance. These luminaires are designed with edge-lit technology to produce highly efficient lighting, which provides pleasant and uniform light distribution with no glare. The luminaires have a clean, modern look and the ultra-thin profile makes them unique and an ideal solution for either drop ceilings or suspended in offices, schools, hospitality and other commercial applications. Their high CRI is ideal for retail stores and showrooms where natural color rendering is essential. The Aurora edge-lit flat panels offer lower power consumption, longer life, dimming option and lower overall maintenance (no re-lamping required) than the standard fluorescent fixture and are therefore an excellent energy efficient replacement. Compatible with most 0-10V dimmers. IES files available on the Aurora website.

SKU Code Wattage Lumens Colour Temperature
AR-LP114P4DD/35 40 5000 3500
AR-LP114P4DD/35EM 40 5000 3500
AR-LP114P4DD/40 40 5000 4000
AR-LP114P4DD/40EM 40 5000 4000
AR-LP114P4DD/50 40 5000 5000
AR-LP114P4DD/50EM 40 5000 5000
Features & Benefits
A range of high energy-efficiency edge-lit LED flat panels for office and commercial lighting applications
Suitable for installation in T-bar suspended ceilings. Optional drywall, surface mount or suspension kit accessories are available
Easy installation & maintenance free
PMMA light guide material and PS diffuser, for even light distribution with 120° beam angle
Ultra-thin white profile frame – depth just 0.39”
Total depth including the driver box 1.96"
CRI>80
High power factor - 0.90
Aurora’s dimmable panels provide a simple 0-10V solution that is compatible with stand alone 0-10V dimmers as well as larger lighting control systems and allows for installation with daylight or occupancy sensors
Compatible with Lutron 0-10V Dimmers
Operating temperature -4°F to 104°F
Available color temperatures 3500K, 4000K, 5000K
Suitable for damp locations
DLC (DesignLights Consortium®) certified
(L70) at 50,000 hour lifetime
5 Year warranty
Read More
Technical Information
Lifetime (Hours)
50000
Power Factor
0.90
IP Rating
Damp Location
Length (Inches)
47.63
Width (Inches)
11.83
Height (Inches)
0.39
Recess Depth (Inches)
1.96
  • cULus Listed
    cULus Listed
  • FCC
    FCC
  • DLC Premium
    DLC Premium
  • Damp Locations
    Damp Locations
