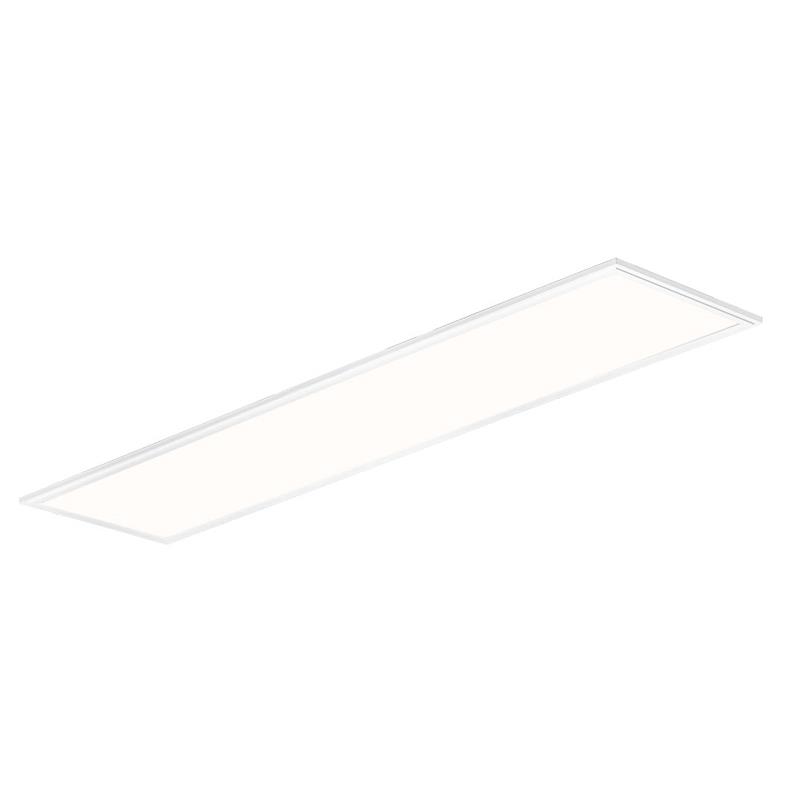

Versitile™ 40W 1' x 4' Dimmable Panel

A range of high energy-efficiency edge-lit Versitile™ LED flat panels for office and commercial lighting applications.Suitable for installation in T-bar suspended ceilings. Optional drywall, surface mount or suspension kit accessories are available.Easy installation & maintenance free.Optical polycarbonate diffuser, for even light distribution with 120° beam angle.Ultra-thin white profile frame – depth just 0.39”.Total depth including the driver box 1.96".CRI>80.High power factor - 0.90.Aurora’s dimmable panels provide a simple 0-10V solution that is compatible with stand alone 0-10V dimmers as well as larger lighting control systems and allows for installation with daylight or occupancy sensors.Suitable for damp locations, IP44.DLC (DesignLights Consortium®) certified.(L70) at 50,000 hour lifetime.5 Year warranty

Spec Sheet


  • A range of high energy-efficiency edge-lit LED flat panels for office and commercial lighting applications
  • Suitable for installation in T-bar suspended ceilings. Optional drywall, surface mount or suspension kit accessories are available
  • Easy installation & maintenance free
  • Optical polycarbonate diffuser, for even light distribution with 120° beam angle
  • Ultra-thin white profile frame – depth just 0.39”
  • Total depth including the driver box 1.96"
  • CRI>80
  • High power factor - 0.90
  • Aurora’s dimmable panels provide a simple 0-10V solution that is compatible with stand alone 0-10V dimmers as well as larger lighting control systems and allows for installation with daylight or occupancy sensors
  • Suitable for damp locations, IP44
  • DLC (DesignLights Consortium®) certified
  • (L70) at 50,000 hour lifetime
  • 5 Year warranty

AR-DWFK14C 1' x 4' Panel Flange Kit
AR-SKLPB100 Panel Suspension Kit
AR-SMKLP114C 1' x 4' Panel Contractor Mount Kit
Input Voltage (Min)
100
Input Voltage (Max)
347
Power Factor
0.99
Input Voltage Type
AC
IP Rating
Damp Location
Recess Depth (Inches)
1.96
Height (Inches)
0.39
Length (Inches)
47.63
Lifetime (Hours)
50000
Width (Inches)
11.83
Dimmable
Yes
Positional Adjustment
Fixed
