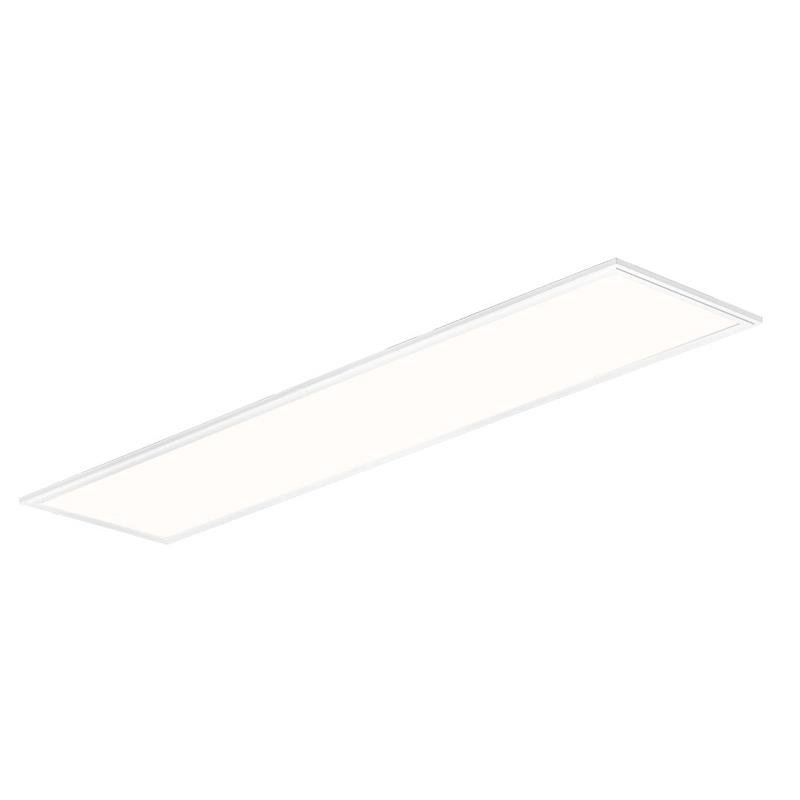

Versitile™ 40W 1' x 4' Dimmable Panel

The Aurora Generation 2 ultra-thin Versitile™ LED panels feature high efficiency, quality and performance. These luminaires are designed with edge-lit technology to produce highly efficient lighting, which provides pleasant and uniform light distribution with no glare. The luminaires have a clean, modern look and the ultra-thin profile makes them unique and an ideal solution for either drop ceilings or suspended in offices, schools, hospitality and other commercial applications. Their high CRI is ideal for retail stores and showrooms where natural color rendering is essential. The Aurora edge-lit flat panels offer lower power consumption, longer life, dimming option and lower overall maintenance (no re-lamping required) than the standard fluorescent fixture and are therefore an excellent energy efficient replacement. The DLC (DesignLights Consortium®) qualified Aurora edge-lit flat panels are available with a number of options and accessories for application versatility. Compatible with Lutron 0-10V dimmers.

Spec Sheet

  • A range of high energy-efficiency edge-lit LED flat panels for office and commercial lighting applications
  • Suitable for installation in T-bar suspended ceilings. Optional drywall, surface mount or suspension kit accessories are available
  • Easy installation & maintenance free
  • Optical polycarbonate diffuser, for even light distribution with 120° beam angle
  • Ultra-thin white profile frame – depth just 0.39”
  • Total depth including the driver box 1.96"
  • CRI>80
  • High power factor - 0.90
  • Aurora’s dimmable panels provide a simple 0-10V solution that is compatible with stand alone 0-10V dimmers as well as larger lighting control systems and allows for installation with daylight or occupancy sensors
  • Compatible with Lutron 0-10V Dimmers
  • Suitable for damp locations, IP44
  • DLC (DesignLights Consortium®) certified
  • (L70) at 50,000 hour lifetime
  • 5 Year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
AR-LP114C4DD/30 40 4000 3000 80
AR-LP114C4DD/30EM 40 4000 3000 80
AR-LP114C4DD/35 40 4000 3500 80
AR-LP114C4DD/35EM 40 4000 3500 80
AR-LP114C4DD/40 40 4100 4000 80
AR-LP114C4DD/40EM 40 4100 4000 80
AR-LP114C4DD/50 40 4200 5000 80
AR-LP114C4DD/50EM 40 4200 5000 80

AR-DWFK14C 1' x 4' Panel Flange Kit
AR-SKLPB100 Panel Suspension Kit
AR-SMKLP114C 1' x 4' Panel Contractor Mount Kit
Input Voltage (Min)
Input Voltage (Max)
Power Factor
Input Voltage Type
IP Rating
Damp Location
Recess Depth (Inches)
Height (Inches)
Length (Inches)
Lifetime (Hours)
Width (Inches)
Positional Adjustment


Instruction Leaflet
