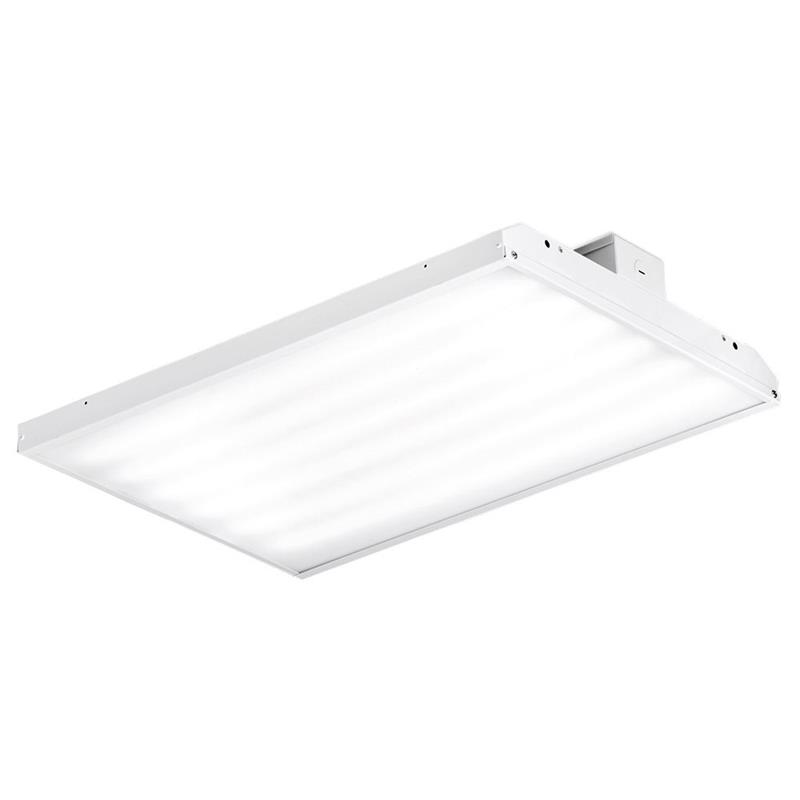

Ostia Sqr2 165W 2ft Dimmable 0-10V Highbay

Ideal one-for-one replacement of conventional lighting systems such as HID and fluorescent. Applications include manufacturing, warehousing and other large indoor spaces with mounting heights from 10'-40'. Luminaire shall be suspended a minimum 24" from ceiling. Surface mounting is not permitted. IES files available on the Aurora website.

Spec Sheet


  • Suitable for use in warehousing, manufacturing, conference centers, industrial and retail applications
  • Significant energy savings and maintenance free
  • Suitable for most 0-10V dimmers - allows for installation with daylight or occupancy sensors
  • Suspension from heights of 10' to 40'
  • Accessory kit includes suspension hangers, 2 x suspension chains, mounting box when installing with 3/4" all thread pipe
  • Operating temperature -4°F to 122°F
  • Suitable for Damp location
  • High transmission PS diffuser fitted as standard
  • 120° beam angle
  • High power factor 0.90
  • Color temperature 5000K
  • (L70) at 50,000 hour lifetime
  • 5 Year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
AR-LHB2165BD/50 165 21000 5000 80
IES

Input Voltage (Min)
100
Input Voltage (Max)
277
Power Factor
0.90
Input Voltage Type
AC
IP Rating
Damp Location
Height (Inches)
3.77
Length (Inches)
23.74
Lifetime (Hours)
50000
Width (Inches)
17.25
Dimmable
Yes
