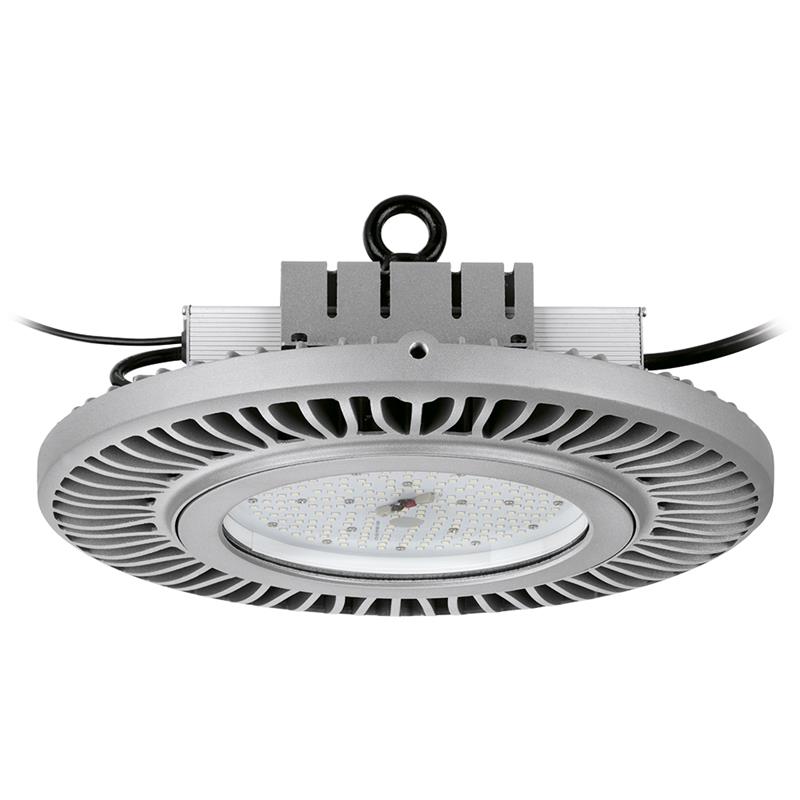

Ostia 230W Dimmable Highbay



Aurora's Ostia high bay allows for significant energy saving to be achieved without sacrificing light output or performance levels. Delivering up to 113lm/W, Ostia outperforms traditional HID technology in a compact, low profile housing. 0-10v Dimming.

SKU Code Wattage Lumens Colour Temperature
AR-HB2302A/40 230 23000 4000
AR-HB2302A/50 230 24610 5000
AR-HB2302A/60 230 26000 6000
SKU Code Description
AR-MS1-S 0-10V Microwave Motion Sensor with Spring Clip
AR-MSR1 Microwave Sensor Remote Controller for AR-MS1-S and AR-MS1-C
DOWNLOADS
All IES/LDT Files
AR-HB2302A/40
IES
AR-HB2302A/50
IES
AR-HB2302A/60
IES
Features & Benefits
Suitable for use in warehousing, manufacturing, conference centers, industrial applications, canopies and high end retail applications
Significant energy savings and maintenance free
High thermal efficient aluminium heatsink - low operating temperature
1-10V dimming function built in as standard - allows for installation with daylight or occupancy sensors
High power factor 0.95
Instant on/off, no re-strike delay
Operating temperature -20°C to 60°C
Suitable for Wet location, IP65
120° beam as standard without reflector, optional 90° or 60° aluminum reflectors and 60° acrylic reflector available
Suspension, 3/4" all thread conduit entry and wall mounting options
Supplied with 4.92ft of power cable
(L70) at 60,000 hour lifetime
5 year warranty
Read More
Technical Information
Lifetime (Hours)
60000
Power Factor
0.95
IP Rating
Wet Location
Height (Inches)
6.76
Overall Diameter (Inches)
13.28
  • FCC
    FCC
  • cETLus
    cETLus
  • Wet Locations
    Wet Locations
