Ariah2™
Spec Sheet

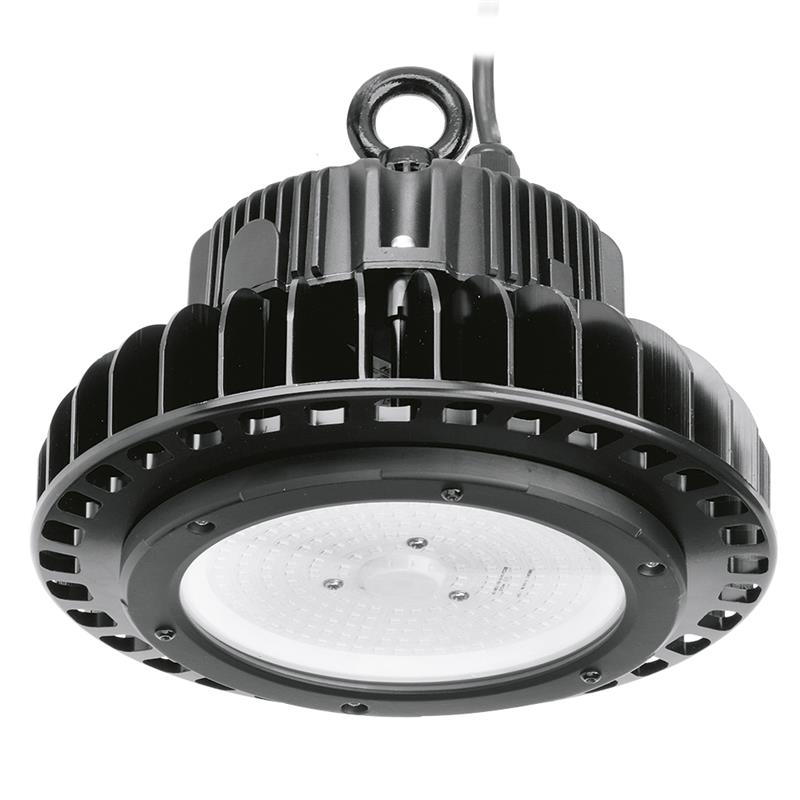

Ariah2™ 150W Dimmable 0-10V Highbay



The new and improved Ariah2™ has been redesigned using the latest LED technology offering a range of 140lm/W LED highbays that are not only super-efficient but compact in size. Suitable for 0-10V dimming and 120° beam angle as standard with reflectors sold separately. Available in 100W, 150W and 200W versions. IES files available on the Aurora Website.

SKU Code Wattage Lumens Colour Temperature Dimmable
AR-HB1501B/50 150 21000 5000 Yes
SKU Code Description
AR-HBACR2 Ariah2™ 70° Highbay Polycarbonate Reflector
AR-RF601 Ariah2™ 60° Highbay Aluminium Reflector
AR-RF901 Ariah2™ 90° Highbay Aluminium Reflector
SKU Code Description
AR-MS1-S 0-10V Microwave Motion Sensor with Spring Clip
AR-MSR1 Microwave Sensor Remote Controller for AR-MS1-S and AR-MS1-C
Features & Benefits
Suitable for use in warehousing, manufacturing, conference centers, industrial applications, canopies and high end retail applications
Significant energy savings and maintenance free
High thermal efficient aluminium heatsink - low operating temperature
Suitable for most 0-10V dimmers - allows for installation with daylight or occupancy sensors
High power factor 0.95
Instant on/off, no re-strike delay
Operating temperature -4°F to 122°F
Suitable for wet location, IP65
Color temperature 5000K
IK08 glass lens with 120° beam as standard, optional 90° or 60° aluminum reflectors and 70° acrylic reflector available
Suspension, 3/4" all thread conduit entry and wall mounting options
Supplied with 4.92ft of power cable
(L70) at 50,000 hour lifetime
5 year warranty
Read More
Technical Information
Lifetime (Hours)
50000
Power Factor
0.95
IP Rating
IP65
Height (Inches)
7.86
Overall Diameter (Inches)
9.9
  • cULus Listed
    cULus Listed
  • DLC Premium
    DLC Premium
  • FCC
    FCC
  • Damp Locations
    Damp Locations
