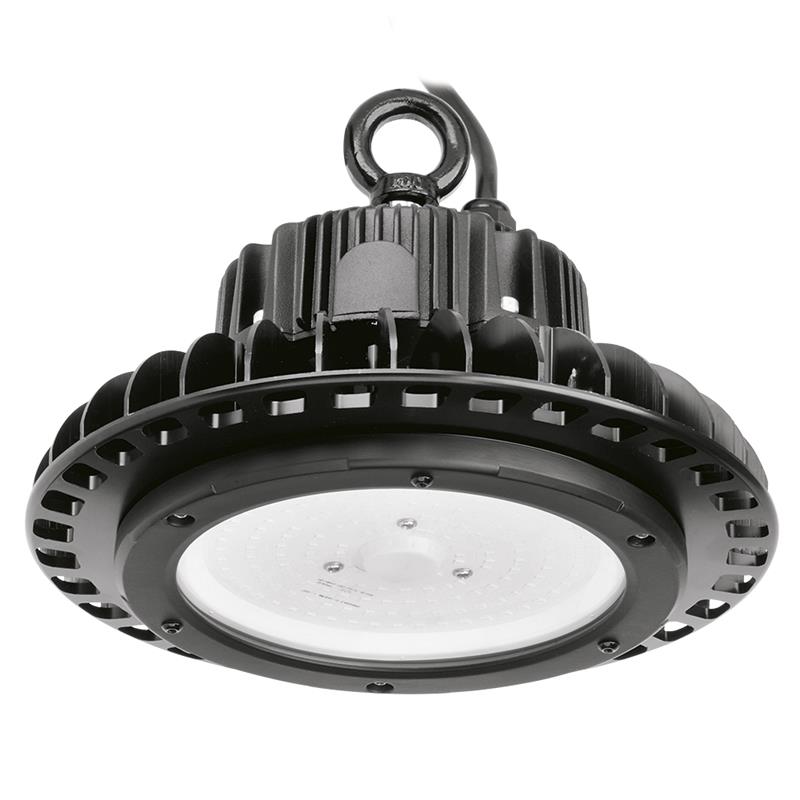

Ariah2™ 100W Dimmable 0-10V Highbay

The new and improved Ariah2™ has been redesigned using the latest LED technology offering a range of 140lm/W LED highbays that are not only super-efficient but compact in size. Suitable for 0-10V dimming and 120° beam angle as standard with reflectors sold separately. Available in 100W, 150W and 200W versions. IES files available on the Aurora Website.

Spec Sheet


  • Suitable for use in warehousing, manufacturing, conference centers, industrial applications, canopies and high end retail applications
  • Significant energy savings and maintenance free
  • High thermal efficient aluminum heatsink - low operating temperature
  • Suitable for most 0-10V dimmers - allows for installation with daylight or occupancy sensors
  • High power factor 0.95
  • Instant on/off, no re-strike delay
  • Operating temperature -4°F to 122°F
  • Suitable for wet location, IP65
  • Color temperature 5000K
  • IK08 glass lens with 120° beam as standard, optional 90° or 60° aluminum reflectors and 70° acrylic reflector available
  • Suspension, 3/4" all thread conduit entry and wall mounting options
  • Supplied with 4.92ft of power cable
  • (L70) at 50,000 hour lifetime
  • 5 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
AR-HB1001B/50 100 14000 5000 80

AR-HBACR2 Ariah2™ 70° Highbay Polycarbonate Reflector
AR-HBAKM10 Ostia Highbay Adaptor Kit- ¾” NPT to M10
AR-HBAKM12 Ostia Highbay Adaptor Kit- ¾” NPT to M12
AR-HBMB1 Ariah2™ Highbay Mounting Bracket
AR-RF601 Ariah2™ 60° Highbay Aluminium Reflector
AR-RF901 Ariah2™ 90° Highbay Aluminium Reflector
Input Voltage (Min)
100
Input Voltage (Max)
277
Power Factor
0.95
Input Voltage Type
AC
IP Rating
Wet Location
Height (Inches)
7.07
Lifetime (Hours)
50000
Overall Diameter (Inches)
9.9
Dimmable
Yes
Positional Adjustment
Fixed

Download

Instruction Leaflet
