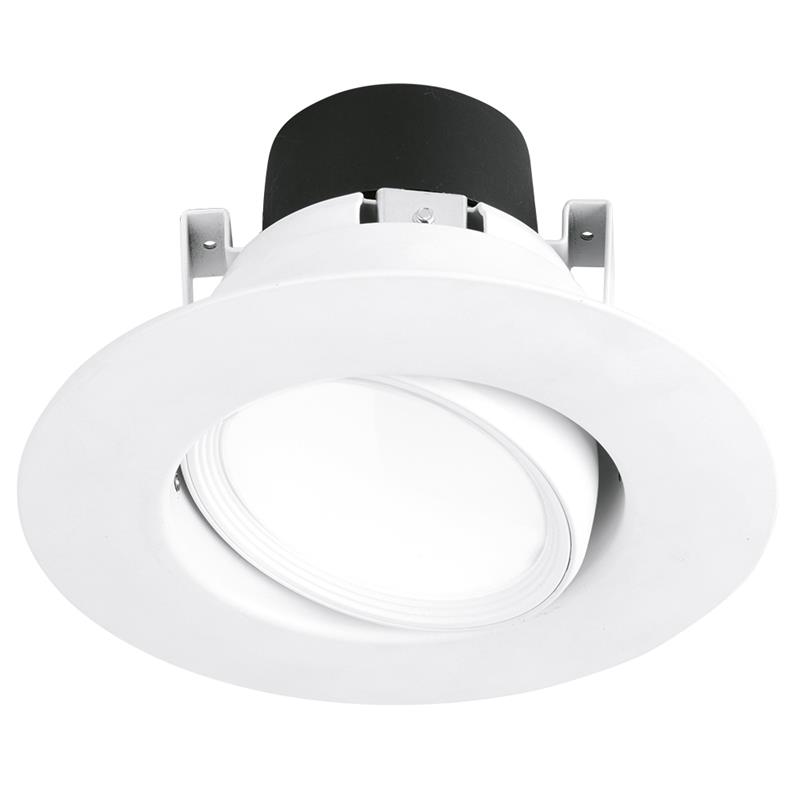

Esofit Plus 9W 4" Retrofit Gimbal Trim

Designed to service the needs of the residential/commercial market, the Aurora Esofit Plus retrofit 4” & 5-6" trims are ideal for replacing existing incandescent, fluorescent and halogen lights with their superior high powered low wattage LED's with CRI>90 for true color rendering. Available in fixed versions with a recessed baffle or adjustable with gimbal feature allowing 355° rotation. The Esofit Plus installs easily into most standard 4” or 5-6" recessed CANs, including IC and NON-IC housings, for both retrofit and new construction. These trims use only 9, 13 or 18 Watts of power & produce 600, 800 and 1200 lumens. Compatible with most line voltage dimmers.

Spec Sheet


  • Fits a range of 4'' or 5''- 6'' CANS
  • Light aluminum body with superior heat dissipation
  • Easy installation - E26 socket & quick connector
  • 120V inline voltage dimmable
  • Power factor >0.9
  • IC rated (when used with an IC rated CAN)
  • 20 degree tiltable
  • 355 degree rotatable
  • Compression Clips provided within the pack
  • High Color Rendering of Ra > 90
  • Polycarbonate diffuser
  • Energy Star accredited
  • Title 24 High Energy compliance for California
  • Suitable for damp locations
  • (L70) at 50,000 hour lifetime
  • 5 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
AR-GDL6040/27 9 600 2700 90
IES
AR-GDL6040/30 9 600 3000 90
IES
AR-GDL6040/40 9 600 4000 90
IES
AR-GDL6040/50 9 600 5000 90
IES

Cutout Diameter Min. (Inches)
3.93
Cutout Diameter Max. (Inches)
3.93
Input Voltage (Min)
120
Input Voltage (Max)
120
Power Factor
0.9
Input Voltage Type
AC
IP Rating
Damp Location
Recess Depth (Inches)
3.69
Lifetime (Hours)
50000
Width (Inches)
5.97
Overall Diameter (Inches)
5.97
Dimmable
Yes
Positional Adjustment
Adjustable

Download

Instruction Leaflet
