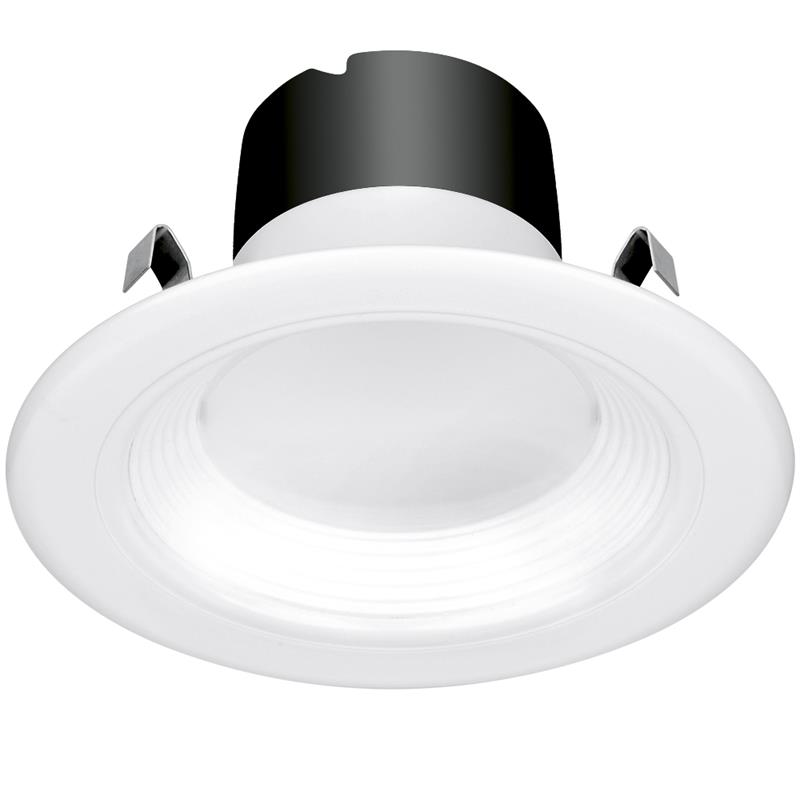

Esofit Plus 9W 4" Retrofit Trim - Wet Location

Designed to service the needs of the residential/commercial market, the Aurora Esofit Plus retrofit 4” & 5-6" trims are ideal for replacing existing incandescent, fluorescent and halogen lights with their superior high powered low wattage LEDs with CRI>90 for true color rendering. Available in fixed versions with a recessed baffle or adjustable with gimbal feature allowing 355° rotation. The Esofit Plus installs easily into most standard 4” or 5-6" recessed CANs, including IC and NON-IC housings, for both retrofit and new construction. These trims use only 9, 13 or 18 Watts of power & produce 600, 800 and 1200 lumens. Compatible with most line voltage dimmers. IES files available on the Aurora website.

Spec Sheet


  • Fits most 4'' or 5- 6'' CANS
  • Light aluminum body with ventilation slot for superior heat dissipation
  • Easy installation - E26 socket & quick connector
  • 120V inline voltage dimmable
  • Power factor >0.9
  • IC rated (when used with an IC rated CAN)
  • Compression springs provided within the pack
  • High Color Rendering of CRI>90
  • Polycarbonate diffuser
  • Energy Star accredited
  • Title 24 High Energy compliance for California
  • (L70) at 50,000 hour lifetime
  • 5 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
AR-DL3340/30 9 600 3000 90

Cutout Diameter Min. (Inches)
3.93
Cutout Diameter Max. (Inches)
4.32
Input Voltage (Min)
120
Input Voltage (Max)
120
Power Factor
0.9
Input Voltage Type
AC
IP Rating
Wet Location
Height (Inches)
2.79
Lifetime (Hours)
50000
Width (Inches)
5.31
Overall Diameter (Inches)
5.31
Dimmable
Yes
Positional Adjustment
Fixed

Download

Instruction Leaflet
