Esofit - LED Retrofit Downlight
Energy
Spec Sheet

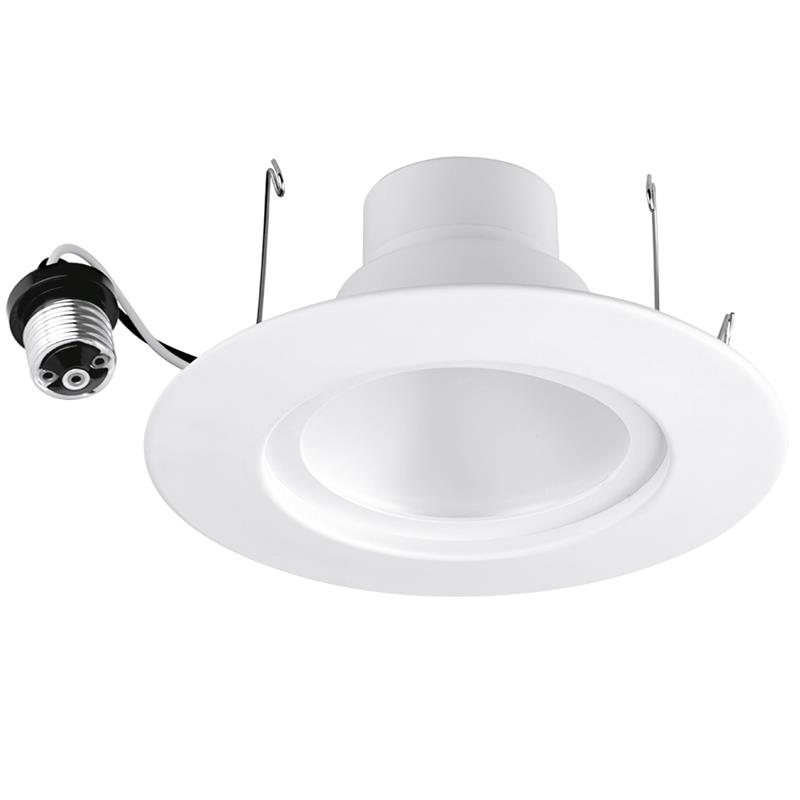

11W 5-6" Retrofit Downlight



Designed to meet the needs of the retail market, the Aurora Esofit HV LED retrofit 5-6” downlight is ideal for replacing existing incandescent or halogen downlights with its superior high powered low wattage LEDs. The Esofit range installs easily into most standard 5-6” recessed CANs, including IC and NON-IC housings and it is for both new and retrofit construction. It consumes only 11 Watts of power with 800 lumen output. Compatible with most household dimmers.

SKU Code Wattage Lumens Colour Temperature
AR-DL1156/27 11 800 2700
Features & Benefits
Fits most 5-6" CANs
Easy installation - E26 socket & quick connector
Flicker Free - Compatible with most household dimmers
High power HV LED light engine
Light aluminum body with superior heat dissipation
Power factor >0.9
IC rated (when used with an IC rated CAN)
High Color Rendering - CRI > 80
ENERGY STAR
Can be used for California Title 24 High Energy Compliance
Suitable for wet locations
(L70) at a 40,000 hour lifetime
5 Year Warranty
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.9
IP Rating
IP65
Height (Inches)
3.62
Overall Diameter (Inches)
7.27
Cutout Diameter Min. (Inches)
4.76
Cutout Diameter Max. (Inches)
5.9
  • IP65
    IP65
  • LED Light Source
    LED Light Source
  • cULus Classified
    cULus Classified
  • FCC
    FCC
  • EnergyStar
    EnergyStar
  • Title 24
    Title 24
  • LM 80
    LM 80
  • Wet Locations
    Wet Locations
  • LM 79
    LM 79
  • LED Lighting Facts
    LED Lighting Facts
