LEDline™ PROCX
Spec Sheet

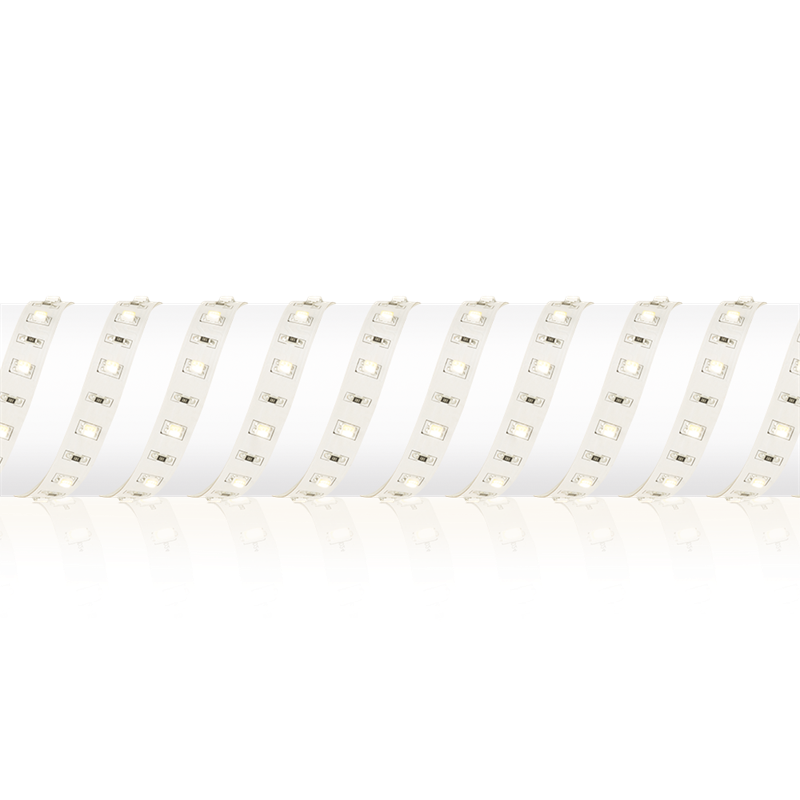

LEDLine™ PROCX 9.6W CRI90 Tuneable White LED Strip



24V Tuneable White CRI90 LED strip is suitable for use in applications where a range of colour temperatures may be required. The tuneable white feature allows the strip to adjust colour temperature between 2500-6000K. With a beam angle of 120° individual light points are less visible creating a continuous glow, delivering up to 750lm per metre. Strip is ideal for use with the AOne™ AU-A1ZBSCCX tuneable white strip controller & the app for further control. Wall controller option is also available. Strip can be cut to length and 2m leads soldered to special order. Reel length 30m.

SKU Code Wattage Lumens Colour Temperature Beam Angle
EN-ST90CX 9.6 450 2500-6000 120
SKU Code Description
EN-ST93A CX Strip Connector
EN-ST93B CX Wired Strip Connector
EN-ST93C CX Inter-Connection Strip Connector
SKU Code Description
AU-CXW9 CX Wall Controller
SKU Code Description Meters Per Driver
AU-LED1624CV 16W Non-Dimmable 24V Constant Voltage Driver 1 Metre Per Driver
AU-LED2524CV 25W Non-Dimmable 24V Constant Voltage Driver 2 Metres Per Driver
AU-LED5024CV 50W Non-Dimmable 24V Constant Voltage Driver 5 Metres Per Driver
AU-LEDD9024 90W IP67 1-10V Dimmable 24V Constant Voltage Driver 9 Metres Per Driver
AU-ELG-100-24 100W IP67 Non-Dimmable 24V Constant Voltage Driver 10 Metres Per Driver
Features & Benefits
Single colour flexible LED strip with self adhesive backing (must be applied to clean surfaces)
Cut points every 100mm
17mm between LEDs
Beam angle 120º
Maximum length of run 10m
For runs over 10m individual lengths should be connected in parallel
Requires 24V DC Constant Voltage LED driver
Very low power consumption - 9.6W per metre
Please order to the nearest metre. (Reel length 30m)
3 Year Warranty - see www.auroralighting.com for details
Compatible with the AOne™ app and tuneable white strip controller
Tuneable white CRI90 flexible LED strip with 3M™ self adhesive backing
CRI90 brings out the true colour of objects and surroundings
Tuneable white colour temperature between 2500-6000K
Cut points every 100mm for maximum flexibility
Beam angle of 120° and 17mm between LEDs, 60 LEDs per metre
Reel length 30m
Read More
Technical Information
Lifetime (Hours)
30000
IP Rating
IP20
Width (mm)
10
Height (mm)
2
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • Parallel
    Parallel
  • CE
    CE
  • MM Mark
    MM Mark
  • LED Light Source
    LED Light Source
  • Class 3 Equipment
    Class 3 Equipment
