LEDline™ PRO CRI90
Spec Sheet

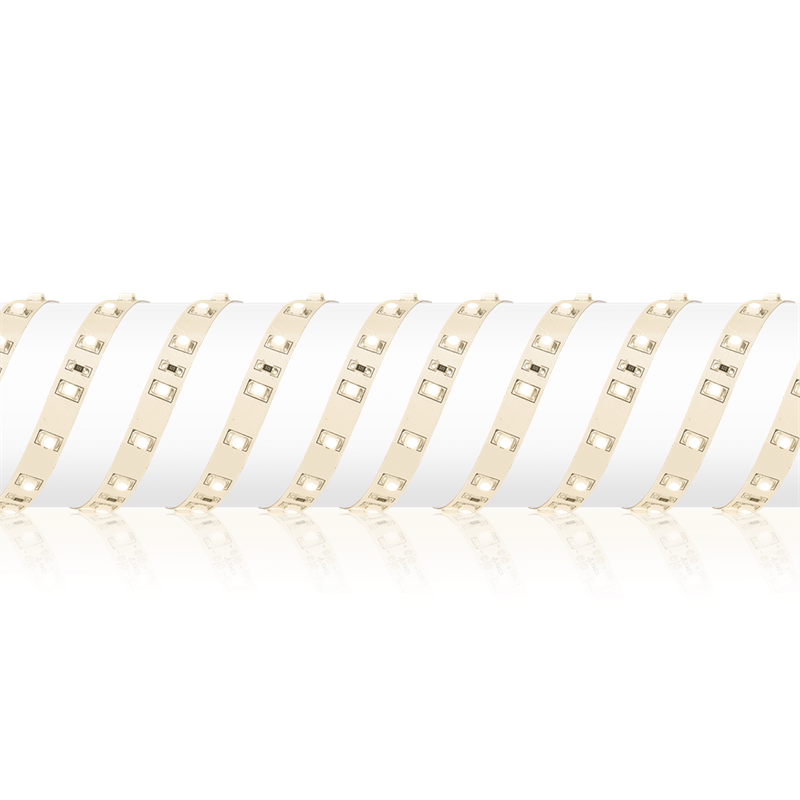

LEDLine™ PRO 9.5W CRI90 Strip



Single colour flexible CRI90 LED strip delivering up to 850lm per metre with self-adhesive backing (must be applied to clean surfaces). Perfect for retail applications where higher colour rendering is needed to distinguish and enhance certain colours. With a beam angle of 120° individual light points are less visible creating a continuous glow. This strip has cut points every 75mm for maximum flexibility what length is concerned. Maximum run of 10m, any length over 10m must be run in parallel. Very low power consumption of 9.4W per metre. Strip can be cut to length and 2m leads soldered to special order. A 24V DC Constant Voltage LED driver is required (see driver options table). Reel length 30m.

SKU Code Wattage Lumens Colour Temperature Beam Angle Dimmable
EN-ST902/30 9.4 750 3000 120 No
EN-ST902/40 9.4 800 4000 120 No
SKU Code Description
EN-ST100A LEDLine™ PRO Single Colour Strip Connector
EN-ST100B LEDLine™ PRO Single Colour Wired Strip Connector
EN-ST100C LEDLine™ PRO Single Colour Inter-Connection Strip Connector
EN-ST224C LEDLine™ PRO Single Colour Inter-Connection Strip Connector
SKU Code Description Meters Per Driver
AU-LED1624CV 16W Non-Dimmable 24V Constant Voltage Driver 1 Metre Per Driver
AU-LED2524CV 25W Non-Dimmable 24V Constant Voltage Driver 2 Metres Per Driver
AU-LED5024CV 50W Non-Dimmable 24V Constant Voltage Driver 5 Metres Per Driver
AU-ELG-100-24 100W IP67 Non-Dimmable 24V Constant Voltage Driver 10 Metres Per Driver
AU-RSP-320-24 320W Non-Dimmable 24V Constant Voltage Driver 34 Metres Per Driver
Features & Benefits
Single colour flexible LED strip with self adhesive backing (must be applied to clean surfaces)
Cut points every 75mm
12mm between LEDs
Beam angle 120º
Maximum length of run 10m
For runs over 10m individual lengths should be connected in parallel
Requires 24V DC Constant Voltage LED driver
Very low power consumption - 9.4W per metre
Please order to the nearest metre. (Reel length 5m)
3 Year Warranty - see www.auroralighting.com for details
Single colour CRI90 flexible LED strip with 3M™ self adhesive backing
CRI90 brings out the true colour of objects and surroundings
Cut points every 75mm for maximum flexibility
Beam angle of 120° and 12mm between LEDs, 78 LEDs per metre
3 year warranty
Read More
Technical Information
Lifetime (Hours)
30000
IP Rating
IP20
Width (mm)
8
Height (mm)
2
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • Parallel
    Parallel
  • CE
    CE
  • MM Mark
    MM Mark
  • LED Light Source
    LED Light Source
  • Class 3 Equipment
    Class 3 Equipment
