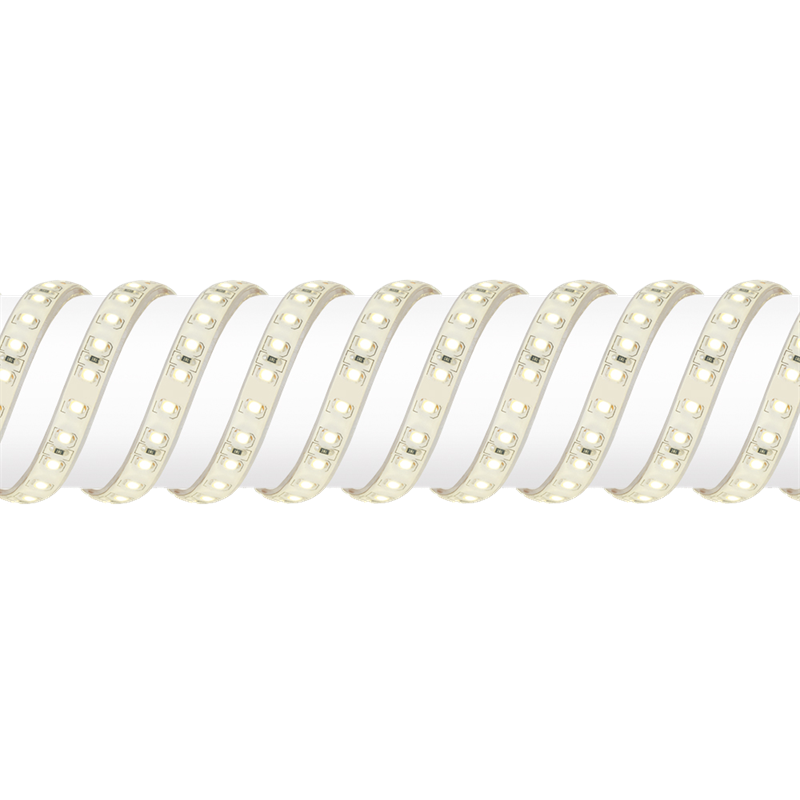

LEDLine™ PRO IP67 Single Colour Flexible Strip

LEDline™ PRO single colour 24V IP67 super bright LED strip is ideal for when LED strip with a higher lumen output is required in wet environments and external applications. Increased brightness by using twice as many LEDs per metre than standard LED strip. Low power consumption of 9.6W per metre. Strip can be cut to length and 2m leads soldered to special order.

Spec Sheet


  • High density IP67 single colour flexible LED strip with 3M™ self adhesive backing
  • Beam angle of 120° and 9mm between LEDs, 120 LEDs per metre
  • Cut points every 50mm for maximum flexibility
  • Voltage drop of 4.5V per 5m and maximum run of 10m
  • For runs over 10m individual lengths should be connected in parallel
  • Any joints or termination points are maximum IP65 rated
  • Requires 24V LED driver (sold separately)
  • Reel length of 10m
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Beam Angle Download
EN-ST324/30 9.6 950 3500 80 120
EN-ST324/40 9.6 988 4000 80 120
EN-ST324/60 9.6 1036 6300 80 120
EN-ST324/BLU 9.6 227 80 120

EN-CH100 Surface Profile
EN-CH100EC1 Channel End Cap
EN-CH100EC2 Cable Entry Channel End Cap
EN-CH101 Surface Profile
EN-CH101EC1 Channel End Cap
EN-CH101EC2 Cable Entry Channel End Cap
EN-CH102 Recessed Profile
EN-CH102EC1 Channel End Cap
EN-CH102EC2 Cable Entry Channel End Cap
EN-CH103 Recessed Profile
EN-CH103EC1 Channel End Cap
EN-CH103EC2 Cable Entry Channel End Cap
EN-CH104 Corner Profile
EN-CH104EC1 Channel End Cap
EN-CH104EC2 Cable Entry Channel End Cap
EN-CH105 Deep Profile
EN-CH105EC1 Channel End Cap
EN-CH105EC2 Cable Entry Channel End Cap
EN-CHC1 Channel Mounting Clip
EN-CHC2 Channel Mounting Clip
EN-CHPC1CL Clear Diffuser Cover
EN-CHPC1FR Frosted Diffuser Cover
EN-CHPC2FR Frosted Diffuser Cover
EN-STIPCK LEDLine™ PRO IP68 Strip Connector Kit
Positional Adjustment
Fixed
Width (mm)
10
Height (mm)
4
IP Rating
IP67
Dimmable
Yes
Input Voltage Type
DC
Input Voltage (Min)
24
Input Voltage (Max)
24
Lifetime (Hours)
35000
