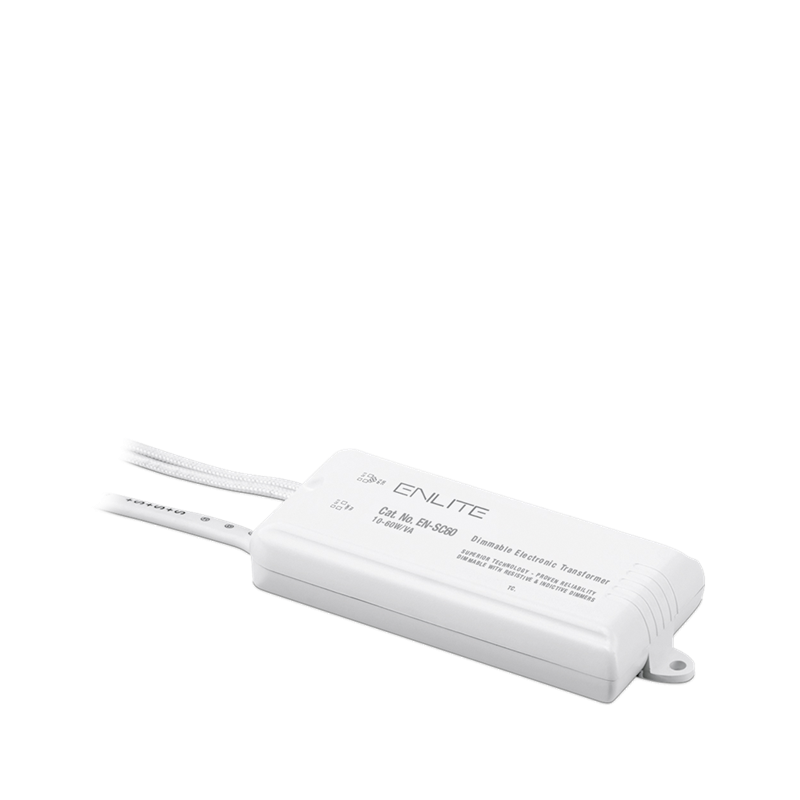

ETran 20-60W/VA Dimmable Low Voltage Electronic Transformer

Fully dimmable with resistive and inductive (leading and trailing edge) dimmers, SC60 transformers feature 1kV (1000V) surge protection in accordance with EMC standard EN 55015, EN 61000 and EN 61547 equipment for general lighting purposes.

Spec Sheet


  • 1kV surge protection – EN 61547
  • Short circuit, thermal and overload protection
  • Fully dimmable with resistive & inductive dimmers
  • Pre-wired with 20cm primary lead
  • 20cm heat resistant secondary lead
  • Safety compliance – EN 61347
  • EMC compliance – EN 55015, EN 61000, EN 61547
  • 3 year warranty
SKU Code Wattage
EN-SC60 60

Positional Adjustment
Fixed
Length (mm)
88
Width (mm)
40
Height (mm)
20
Dimmable
Yes
Input Voltage Type
AC
Input Voltage (Min)
220
Input Voltage (Max)
240
