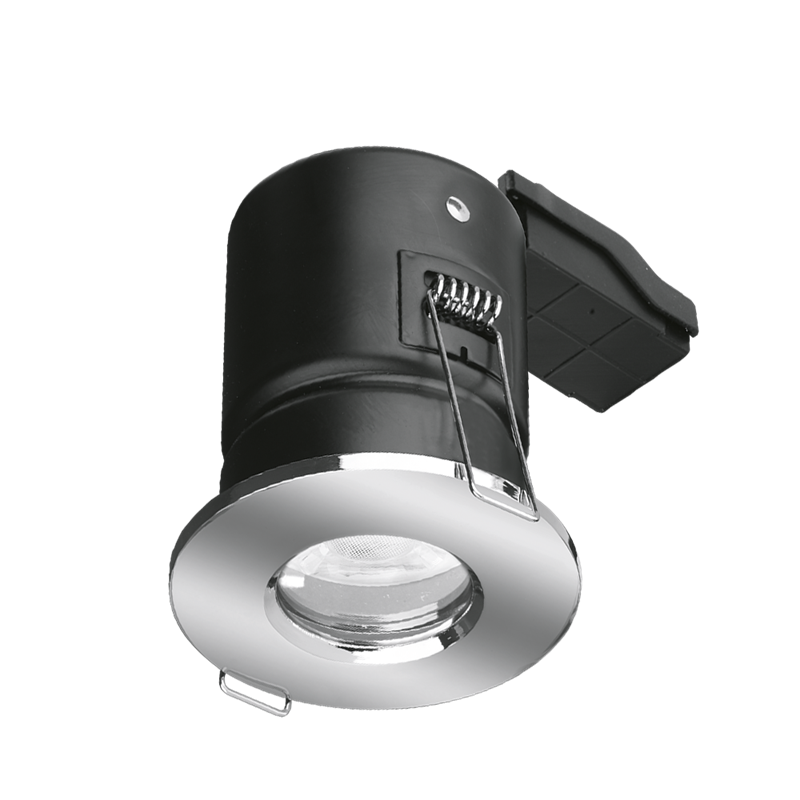

EFD™ GU10 IP65 Aluminium Fire Rated Downlight

The complete EFD™ GU10 range of compact fire rated downlights are perfect for a wide range of applications and installations. Available in fixed, adjustable, IP65 rated and various colour finishes, the range utilises patented integrated intumescent material completely sealing the downlight and cut-out in the event of a fire.

Spec Sheet


  • New and improved loop in/out terminal block for quick and easy installation
  • Tested in 30, 60 and 90-minute fire rated ceilings
  • 3 year warranty
SKU Code Max. Lamp Wattage Download
EN-FD103PC 50
EN-FD103SN 50
EN-FD103W 50

Positional Adjustment
Fixed
Height (mm)
130
Recess Depth (mm)
155
Overall Diameter (mm)
86
Cutout Diameter Min. (mm)
75
Cutout Diameter Max. (mm)
75
IP Rating
IP65
Input Voltage Type
AC
Input Voltage (Min)
240
Input Voltage (Max)
240

Download

Instruction Leaflet
Instruction Leaflet
