EDLM™ PRO
Spec Sheet

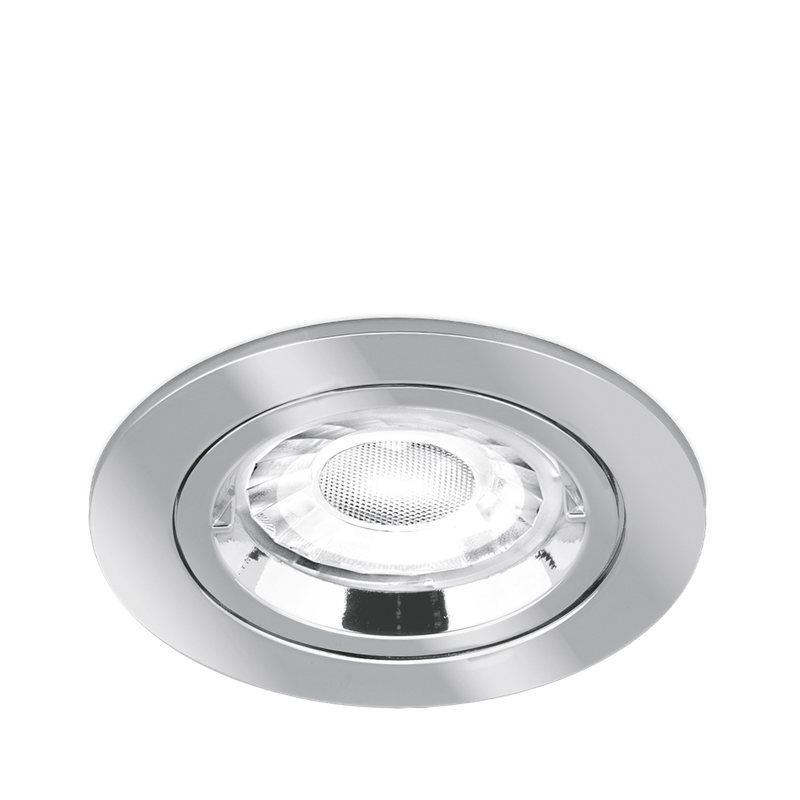

EDLM™ PRO GU10 Fixed Lock Ring Downlight



The EDLM™ PRO range features fixed, adjustable and wallwasher aluminium downlights available in white, polished chrome and satin nickel finishes. Utilising a discreet lock ring to hold the lamp in place, the EDLM™ PRO range is ideal for use with Enlite ICE™ Lamps.

SKU Code Max. Lamp Wattage
EN-DLM356MW 50
EN-DLM356PC 50
EN-DLM356SN 50
EN-DLM356W 50
Downloads
All Energy Label
EN-DLM356MW
EN-DLM356PC
EN-DLM356SN
EN-DLM356W
Features & Benefits
High quality aluminium downlights
Extended spring fixing posts allow installation in double thickness plasterboard
Adjustable EN-DLM357 horizontal adjustment 30°
Wallwasher EN-DLM355 rotates 355° with a horizontal adjustment 40°
Supplied with GU10 lampholder - lamp not included (Max 50W)
5 Year warranty
Read More
Technical Information
IP Rating
IP20
Overall Diameter (mm)
80
Height (mm)
115
Recess Depth (mm)
140
Cutout Diameter Min. (mm)
70
  • CE
    CE
  • Nemko
    Nemko
  • 240V
    240V
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
