ICE™ Lamp
Spec Sheet

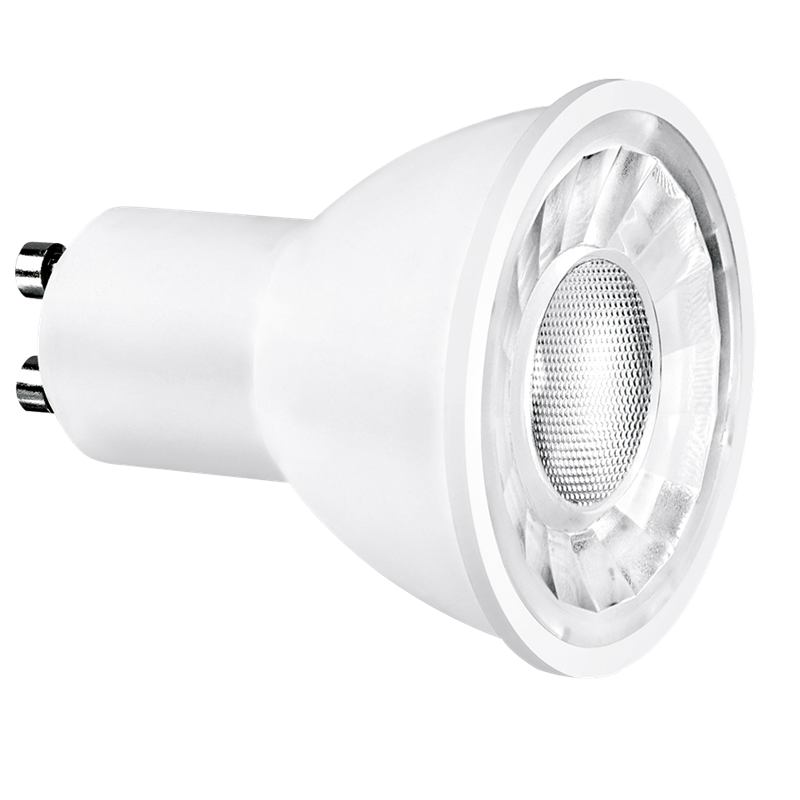

ICE™ 240V GU10 3W Dimmable LED Lamp



Due to popular demand, the market leading ICE™ lamp range has grown. Achieve significant energy savings and light output with the 4W alongside the already established industry leading 5W 108lm/W GU10 lamps. Featuring ThermoTec™ heat management technology and EnFiniti™ lenses which are now also available in 24° and 38° beam angles. The ICE™ range has proved to be exceptionally reliable delivering up to 540 lumens in both dimmable and non-dimmable - allowing for direct halogen lamp replacement at a fraction of the energy consumption.

SKU Code Wattage Lumens Colour Temperature Beam Angle Dimmable
EN-DGU003/30 3 270 3000 60 Yes
EN-DGU003/40 3 280 4000 60 Yes
Downloads
All Energy Label
EN-DGU003/30
EN-DGU003/40
All IES/LDT Files
EN-DGU003/30
LDT
EN-DGU003/40
LDT
Features & Benefits
Excellent efficacy - Range up to 108lm/W delivers more light using less energy
ThermoTec™ technology utilises a combination of highly efficient LED light source, aluminium heat sinking and thermoplastic material for longer life and consistent performance
EnFiniti™ edge-to-edge multifaceted polycarbonate lens creates low glare and halogen like appearance
Wide 60° beam angle delivers increased light distribution
24° and 38° beam angles also available for 5W version
3W version also available in green and blue
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
25000
Power Factor
0.5
IP Rating
IP20
Overall Diameter (mm)
50
Overall Length (mm)
57
  • L2 Compliant
    L2 Compliant
  • RoHS
    RoHS
  • Class 2 Equipment
    Class 2 Equipment
  • ErP Compliant
    ErP Compliant
  • LED Light Source
    LED Light Source
  • CE
    CE
  • L1 Compliant
    L1 Compliant
  • SAA
    SAA
  • 240V
    240V



Enfiniti™ lenses have been designed to stretch right to the sides of the front of the lamp to fill out 100% of the aperture, helping to punch out maximum light. They are also perfect if you prefer the look of halogen lamps, with the dichroic-like appearance
By using a combination of a highly efficient LED source, aluminium heat sink and thermoplastic housing, any heat is efficiently drawn away from the driver and LEDs to provide longer life and a consistent performance throughout a product’s lifetime
