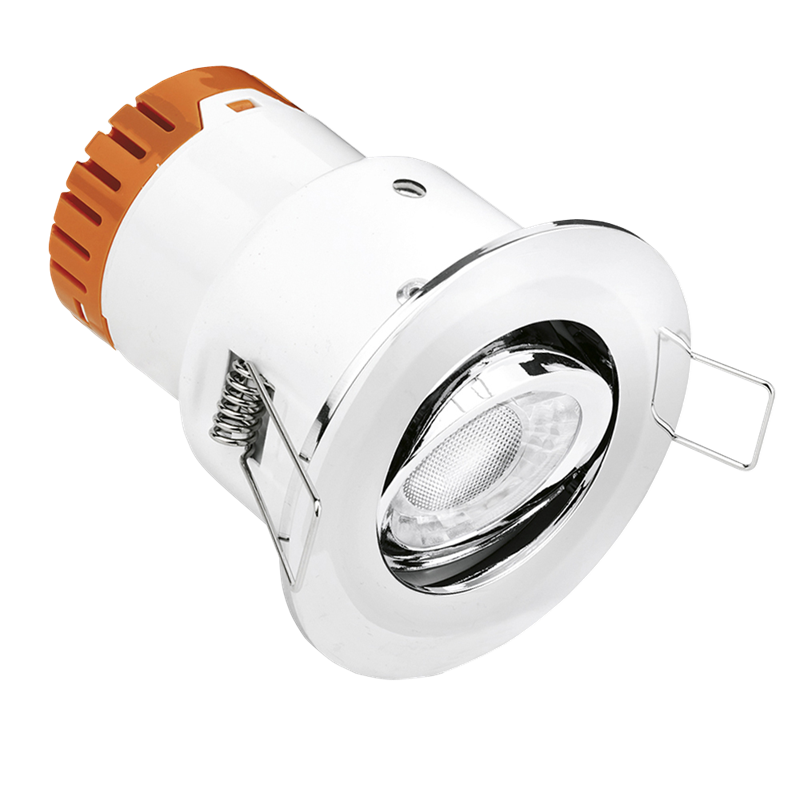

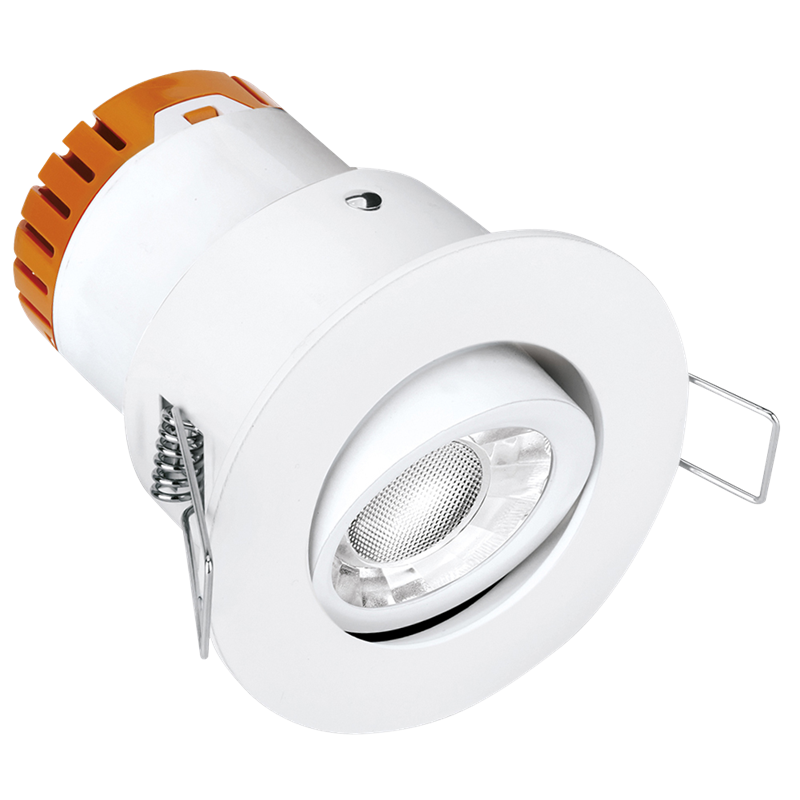

E5™ Adjustable 4.5W Dimmable Fire Rated LED Downlight



The E5™ and established E8™ fixed and adjustable fire rated downlights set new levels in performance. Featuring the sparkling low glare multifaceted EnFiniti™ lens and delivering up to 390lm from the 4.5W version and 640lm from the 8W. The E5™ and E8™ are packed with features and benefits which allow for a quick and cost effective installation while still providing users with optimum performance and energy saving LED technology.

SKU Code Wattage Lumens Colour Temperature Beam Angle Dimmable
EN-DE52MW/30 4.5 420 3000 60 Yes
EN-DE52MW/40 4.5 440 4000 60 Yes
EN-DE52PC/30 4.5 420 3000 60 Yes
EN-DE52PC/40 4.5 440 4000 60 Yes
EN-DE52SN/30 4.5 420 3000 60 Yes
EN-DE52SN/40 4.5 440 4000 60 Yes
EN-DE52W/30 4.5 420 3000 60 Yes
EN-DE52W/40 4.5 440 4000 60 Yes
Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility
Downloads
All IES/LDT Files
EN-DE52MW/30
EN-DE52MW/40
EN-DE52PC/30
EN-DE52PC/40
EN-DE52SN/30
EN-DE52SN/40
EN-DE52W/30
EN-DE52W/40
#5
IES
#5
LDT
Features & Benefits
EnFiniti™ edge-to-edge multifaceted polycarbonate lens for low glare and halogen like appearance
Wide 60° beam angle delivers increased light distribution
Fibre based insulation coverable - up to 300mm
Integrated driver with new push fit loop in/out terminals suitable for use with solid or stranded cable for easy installation
Super slim interchangeable IP65 bezels for fixed version provide a high end sleek finish. IP20 bezel included with adjustable version
Tested in 30, 60 and 90-minute fire rated ceilings
3 year warranty
Read More
Technical Information
Lifetime (Hours)
25000
Power Factor
0.7
IP Rating
IP20
Overall Diameter (mm)
88
Length (mm)
95
Height (mm)
95
Recess Depth (mm)
90
Cutout Diameter Min. (mm)
75
Cutout Diameter Max. (mm)
75
  • CE
    CE
  • RoHS
    RoHS
  • SEAI
    SEAI
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • LED Light Source
    LED Light Source
  • 240V
    240V
  • IP20
    IP20
  • Dimmable
    Dimmable



Enfiniti™ lenses have been designed to stretch right to the sides of the front of the lamp to fill out 100% of the aperture, helping to punch out maximum light. They are also perfect if you prefer the look of halogen lamps, with the dichroic-like appearance
