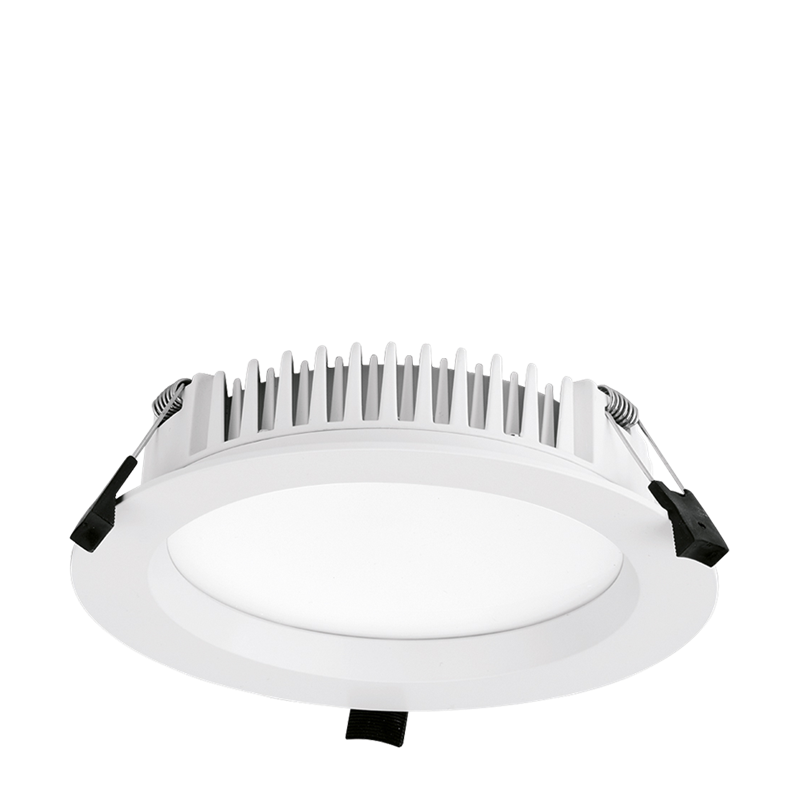

Lumi-Fit™ 18W High Performance Dimmable LED Downlight

The range of triac dimmable Lumi-Fit™ commercial downlights deliver up to an impressive 106lm/W. Supplied with remote driver and fitted with an acrylic diffuser to reduce glare and for even light distribution. With multiple wattages and sizes on offer this range meets the needs for countless new commercial applications or an upgrade for compact fluorescent fittings in existing applications.

Spec Sheet


  • Low cost energy saving alternative to compact fluorescent fittings
  • Life not affected by frequent switching e.g. when used with occupancy controls
  • Triac dimmable as standard
  • Plug and play remote driver for easy installation
  • DALI version available to order
  • IP54 rated
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Beam Angle Download
EN-DDLH618/40 18 1800 4000 80 100

EN-DLEM2 3 Hour Non-Maintained Emergency Pack
Positional Adjustment
Baffle
Height (mm)
45
Recess Depth (mm)
70
Overall Diameter (mm)
190
Cutout Diameter Min. (mm)
160
Cutout Diameter Max. (mm)
170
IP Rating
IP54
Dimmable
Yes
Input Voltage Type
AC
Input Voltage (Min)
200
Input Voltage (Max)
240
Power Factor
0.9
Lifetime (Hours)
40000
Switching Cycles
100000

Download

Instruction Leaflet
Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility
