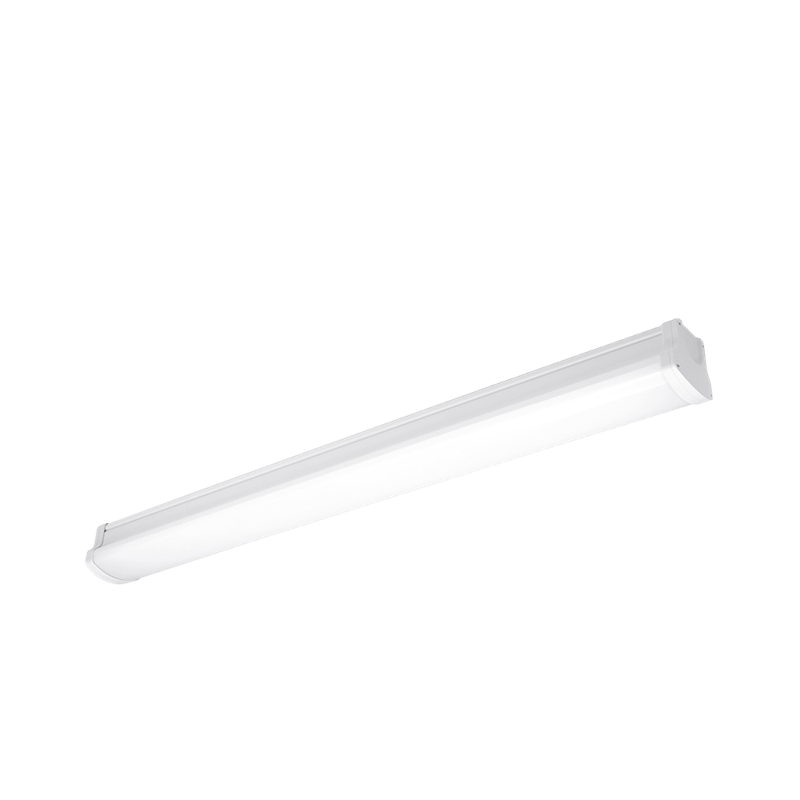

UniPac™ 1500mm 54W IP65 Polycarbonate LED Anti-Corrosive

The UniPac™ range of anti-corrosives is the perfect cost effective solution to replace traditional T8 fluorescent fittings. Formed from a single polycarbonate body and using high lumen LED chips, it's engineered for installation in the most challenging environments making the decision to switch to LED that much easier. Also available with microwave sensor and corridor function.

Spec Sheet


  • IP65 vandal resistant polycarbonate housing and opal diffuser provide smooth, even light distribution with no hot spots
  • Ideal for both interior and exterior applications e.g. carparks
  • Push fit terminals in both ends for through cable wiring and quick and easy installation
  • 20mm conduit entry knockouts on each end cap
  • Supplied with mounting clips and cable glands
  • Microwave sensor detection range up to 12 metres
  • Light detection at 30 lux unless disabled
  • Adjustable hold time 5 seconds to 10 minutes
  • IK08 impact rating
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Beam Angle Download
EN-ANTE554/40 54 4900 4000 80 120
EN-ANTE554/40EM 54 4900 4000 80 120
EN-ANTE554/40MS 54 4900 4000 80 120

Positional Adjustment
Fixed
Length (mm)
1526
Width (mm)
110
Height (mm)
95
IP Rating
IP65
Dimmable
No
Input Voltage Type
AC
Input Voltage (Min)
100
Input Voltage (Max)
240
Power Factor
0.9
Lifetime (Hours)
25000

Download

Instruction Leaflet
Instruction Leaflet - EM
Instruction Leaflet - MSC
