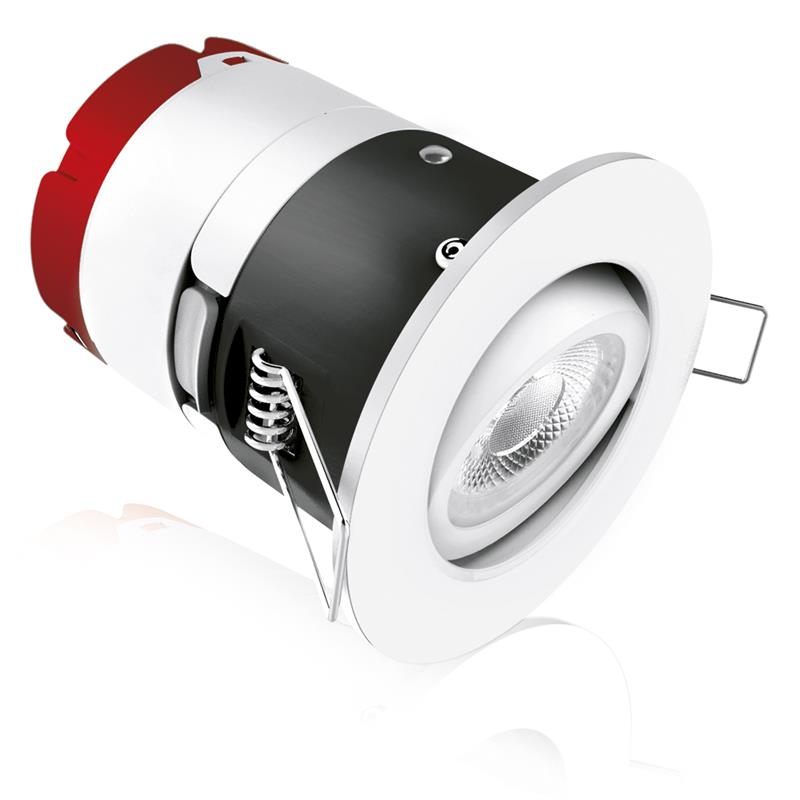

mPro™ Adjustable IP65 Dimmable Fire Rated Downlight



IP65, Adjustable, integrated, fire rated 7W LED downlight with unique convertible design to fit ceiling voids as shallow as 47mm. Incorporated miniaturised NanoDrive™ power supply. Available in 2700K, 3000K and 4000K, mPro™ delivers up to 94lm/W making it the most efficient fire rated downlight on the market. Available in White, Matt White, Polished Chrome and Satin Nickel. Fitted with 60° lens. Insulation cover and FastRFix™ rapid install system connector included. Rated to 30, 60 and 90 minute fire ceilings. Class 2 rated with floating earth terminal. Complies with BS EN 1365-2: 2014 (fire resistance), BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (acoustics), BS EN 13141-1:2004 (Air leakage).

SKU Code Wattage Lumens Colour Temperature Beam Angle Dimmable
AU-MPRO2MW/27 7 600 2700 60 No
AU-MPRO2MW/30 7 630 3000 60 No
AU-MPRO2MW/40 7 660 4000 60 No
AU-MPRO2PC/27 7 600 2700 60 No
AU-MPRO2PC/30 7 630 3000 60 No
AU-MPRO2PC/40 7 660 4000 60 No
AU-MPRO2SN/27 7 600 2700 60 No
AU-MPRO2SN/30 7 630 3000 60 No
AU-MPRO2SN/40 7 660 4000 60 No
AU-MPRO2W/27 7 600 2700 60 No
AU-MPRO2W/30 7 630 3000 60 No
AU-MPRO2W/40 7 660 4000 60 No
SKU Code Description
AU-FRLM10EM 3 Hour Maintained Emergency Pack
Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility
Downloads
All IES/LDT Files
AU-MPRO2MW/27
AU-MPRO2MW/30
AU-MPRO2MW/40
AU-MPRO2PC/27
AU-MPRO2PC/30
AU-MPRO2PC/40
AU-MPRO2SN/27
AU-MPRO2SN/30
AU-MPRO2SN/40
AU-MPRO2W/27
AU-MPRO2W/30
AU-MPRO2W/40
Features & Benefits
Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
FastRFix™ rapid install system connector included
IC cap included
ErP compliant - High colour rendering index (Ra) >80
Rated to 30, 60 & 90 minute fire ceilings
Separate emergency pack available - AU-FRLM10EM
BS EN 1365-2: 2014 (Fire resistance)
BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (Acoustics)
(L70) at a 40,000 hour lifetime
BS EN 13141-1:2004 (Air leakage)
5 Year Warranty – see auroralighting.com for details
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.85
IP Rating
IP65
Overall Diameter (mm)
98
Height (mm)
98
Recess Depth (mm)
98
Cutout Diameter Min. (mm)
85
Cutout Diameter Max. (mm)
85
DALI
No
  • ErP Compliant
    ErP Compliant
  • IP65
    IP65
  • LED Light Source
    LED Light Source
  • CE
    CE
  • 240V
    240V
  • Dimmable
    Dimmable
  • RoHS
    RoHS
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use



A versatile lock and release electrical connector allowing for easier installation with a screwless cover and cable clamp allowing for quicker installation with large terminals for the ease of wiring
LEDchroic™ anti-glare lens technology accurately simulates the light output from traditional dichroic reflector. Aesthetically, it looks exactly like a dichroic halogen when on or off
