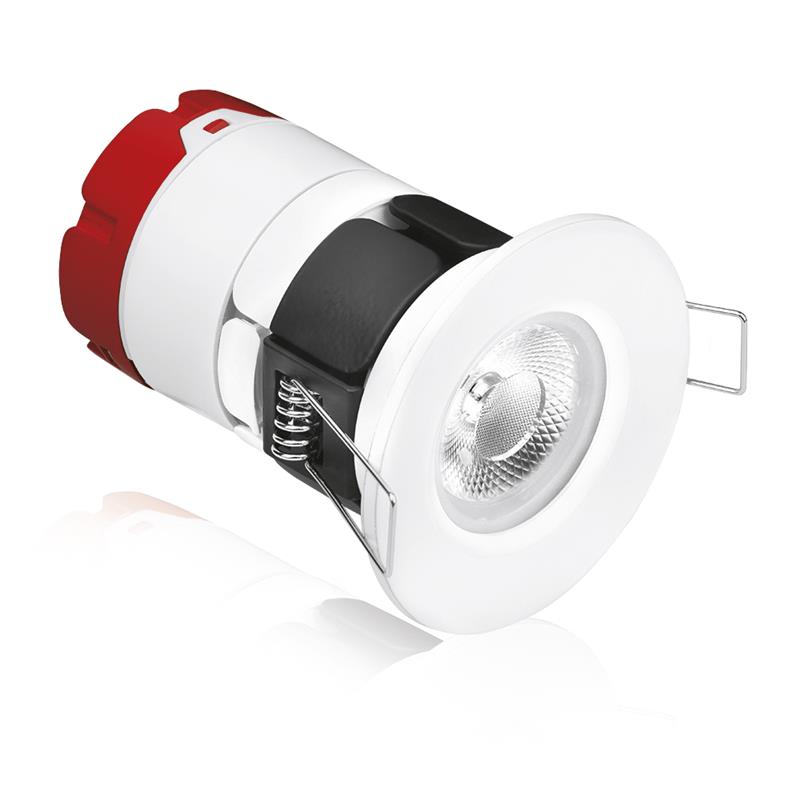

mPro™ Fixed IP65 Dimmable Fire Rated Downlight

Fixed, integrated, fire rated 7W LED downlight with unique convertible design to fit ceiling voids as shallow as 47mm. Incorporated miniaturised NanoDrive™ power supply. Available in 2700K, 3000K and 4000K, mPro™ delivers up to 91lm/W making it the most efficient fire rated downlight on the market. Interchangeable bezels available in White, Matt White, Polished Chrome and Satin Nickel. Two lens options: 40° and 60° with 60° fitted as standard. Insulation cover and FastRFix™ rapid install system connector included. Rated to 30, 60 and 90 minute fire ceilings. Class 2 rated with floating earth terminal. Complies with BS EN 1365-2: 2014 (fire resistance), BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (acoustics), BS EN 13141-1:2004 (Air leakage). 5 year extended warranty - register at auroralighting.com/warranty

Spec Sheet


  • Rated to 30, 60 & 90 minute fire ceilings
  • Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
  • 60° lens supplied, interchangeable 40° lens - sold separately
  • FastRFix™ rapid install system connector included
  • IC cap included
  • ErP compliant - High colour rendering index (Ra) >80
  • Separate emergency pack available - AU-FRLM10EM
  • BS EN 1365-2: 2014 (Fire resistance)
  • BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (Acoustics)
  • (L70) at a 40,000 hour lifetime
  • BS EN 13141-1:2004 (Air leakage)
  • 5 Year Warranty – see auroralighting.com for details
SKU Code Wattage Lumens Colour Temp (K) Ra Beam Angle Download
AU-MPRO1/27 7 560 2700 80 60
AU-MPRO1/30 7 600 3000 80 60
AU-MPRO1/40 7 640 4000 80 60

AU-AP600 mPro™ and m10™ Adaptor Plate
AU-BZ600 mPro™ and m10™ Bezel
AU-BZ601 mPro™ and m10™ IP65 Square Bezel
AU-BZ603 mPro™ and m10™ Bezel
AU-BZ605 mPro™ and m10™ Slim Bezel
AU-FRLM10EM 3 Hour Maintained Emergency Pack
AU-LNMPRO40 mPro™ Interchangeable 40° Lens
Positional Adjustment
Fixed
Height (mm)
100
Recess Depth (mm)
100
Overall Diameter (mm)
88
Cutout Diameter Min. (mm)
65
Cutout Diameter Max. (mm)
72
IP Rating
IP65
Dimmable
Yes
Input Voltage Type
AC
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.85
Lifetime (Hours)
40000

Download

Instruction Leaflet
Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility
